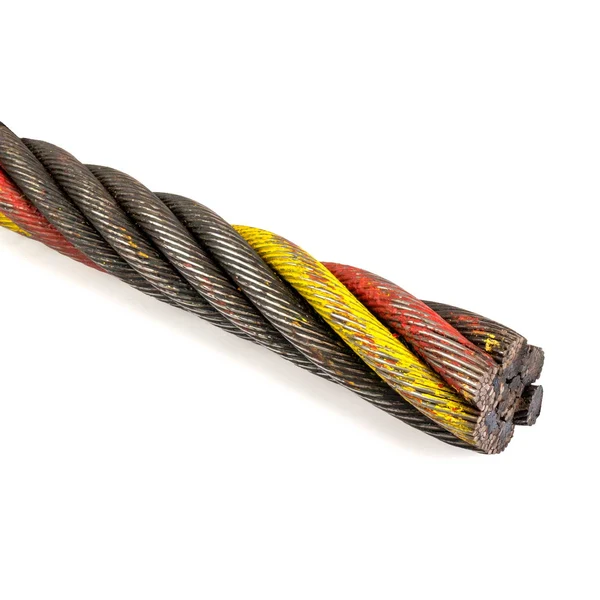

1 / 6 1-3/4" 6x37 Bright Wire Rope - EIPS IWRC | 2,500 ft.
The 1-3/4" 6x37 Bright Wire Rope - EIPS IWRC - 2,500 ft. is part of our 6x37 Bright Steel Core Wire Rope line in the Wire Rope department. It is rated with a break strength of 153 tons / 306,000 lbs. and a Grade EIPS rating. Construction: bright finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 153 tons / 306,000 lbs.
- Grade: EIPS
- Length: 2,500'
- Wire Rope Diameter: 1-3/4"
| SKU | SC134EIB637-2500FT |
|---|---|
| Shipping weight | 14,175.01 lbs |
| Assembly Break Strength | 153 tons / 306,000 lbs. |
| Rated for Overhead Lifting | Yes |
| Grade | EIPS |
| Wire Rope Diameter | 1-3/4" |
| Length | 2,500' |
| Wire Rope Class | 6x37 |
| Rope Construction | 6x36 |
| Core | IWRC |
| Finish | Bright |
| Product Weight | 14,175 lbs. |
| Weight Per Foot | 5.67 lbs. |
| Standards | Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023 |
| Additional Info | Right Hand Regular Lay |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
