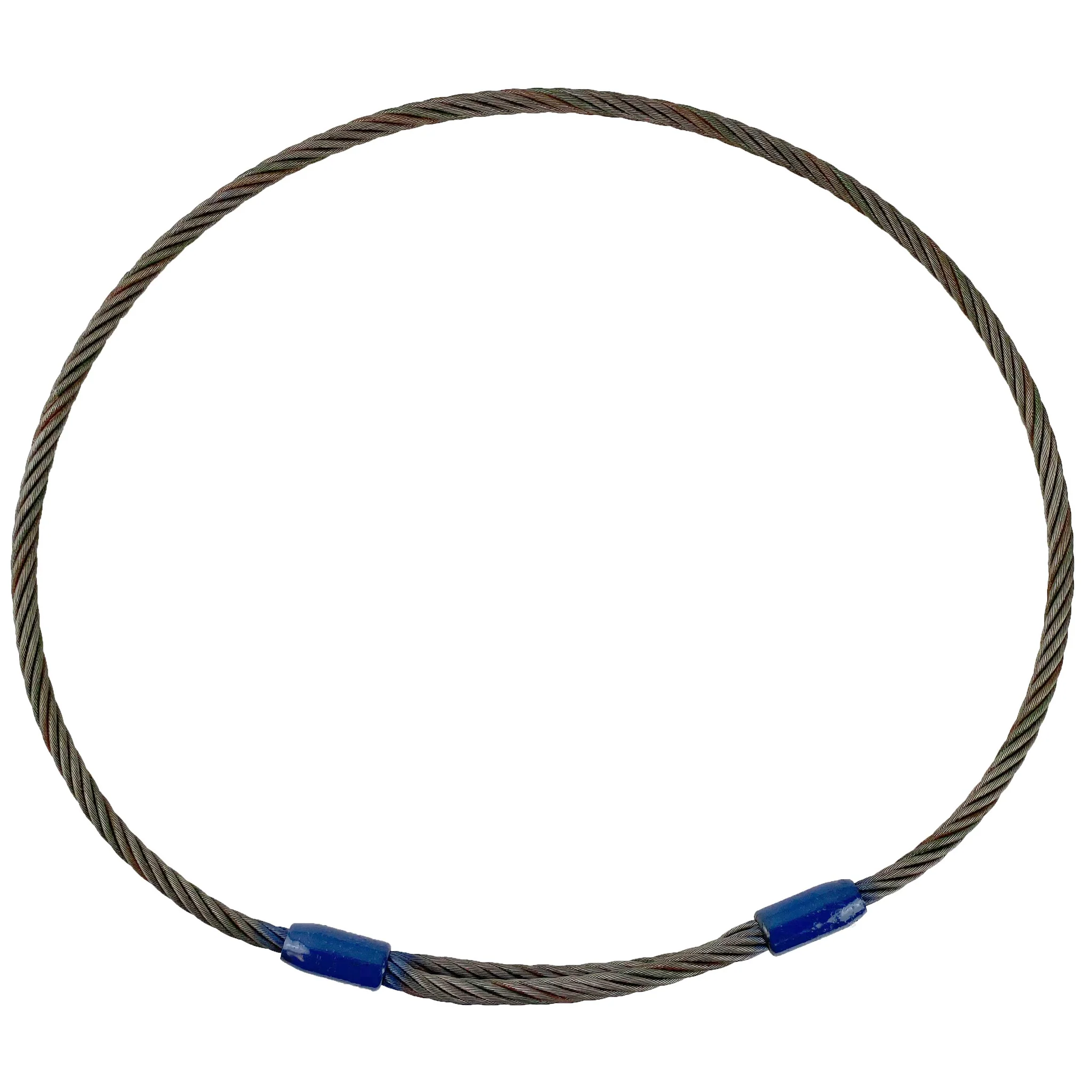

1 / 4 1-3/8" x 18' Mechanical Splice Grommet Wire Rope Sling
The 1-3/8" x 18' Mechanical Splice Grommet Wire Rope Sling is part of our Type 215 Mechanical Splice Grommets line in the Wire Rope Slings department.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Length: 18'
- 30 Degree Capacity: 30 ton
- 45 Degree Capacity: 42 ton
- 60 Degree Capacity: 28 ton
- Vertical Capacity: 30 ton
- Choker Capacity: 21 ton
| SKU | MSG-1-38-18 |
|---|---|
| Shipping weight | 150 lbs |
| Safety Factor | 5:1 |
| 30 Degree Capacity | 30 ton |
| 45 Degree Capacity | 42 ton |
| 60 Degree Capacity | 28 ton |
| Vertical Capacity | 30 ton |
| Choker Capacity | 21 ton |
| Basket Capacity | 60 ton |
| Diameter | 1-3/8" |
| Length | 18' |
| Body Diameter | 1-3/8" |
| Wire Rope Class | 6x36WS |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
