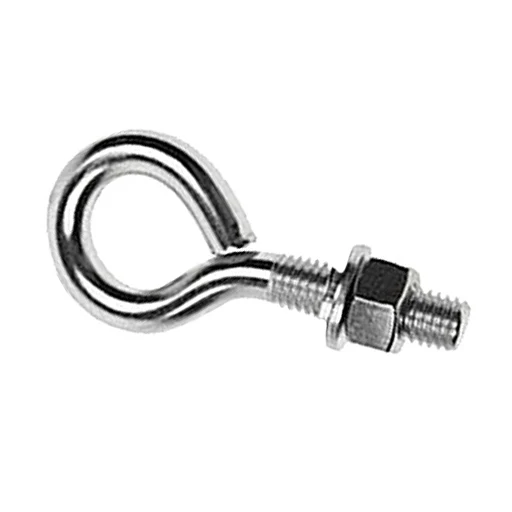

1 / 2 1/4" x 5" Stainless Steel Type 316 Non-Welded Eye Bolt
The 1/4" x 5" Stainless Steel Type 316 Non-Welded Eye Bolt is part of our Stainless Non-Welded Eye Bolts line in the Eye Bolts department. It is rated with a working load limit of 200 lbs., a break strength of 800 lbs. and a Grade 316 Stainless Steel rating. Construction: Steel.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 200 lbs
- Assembly Break Strength: 800 lbs.
- Grade: 316 Stainless Steel
- Overall Length: 5.87"
- Shank Length: 5"
- Diameter: 1/4"
| SKU | NWEBSS14X5 |
|---|---|
| Shipping weight | 0.12 lbs |
| Working Load Limit (lbs.) | 200 |
| Assembly Break Strength | 800 lbs. |
| Grade | 316 Stainless Steel |
| Diameter | 1/4" |
| Overall Length | 5.87" |
| Shank Length | 5" |
| Material | Steel |
| Product Weight | .1 lbs. |
| Standards | Meets or exceeds ASTM F541 requirements. |
| Additional Info | Overall width: 0.93" |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
