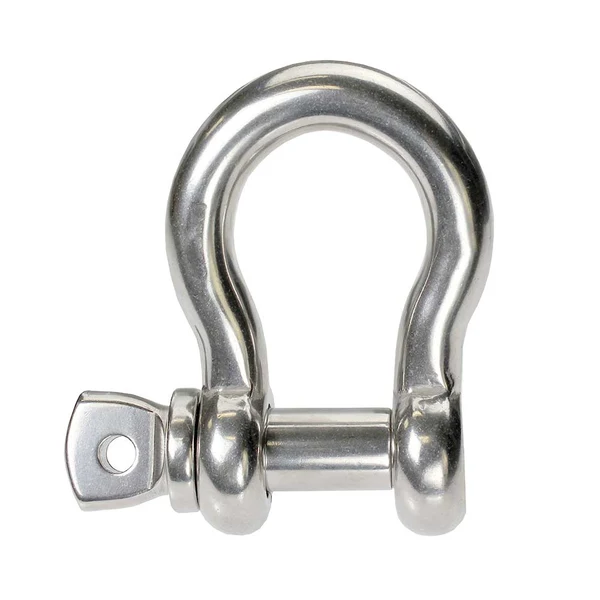

1" Stainless Steel Drop Forged Screw Pin Anchor Shackle - 5 Ton
The 1" Stainless Steel Drop Forged Screw Pin Anchor Shackle - 5 Ton is part of our Stainless Screw Pin line in the Shackles department. It is rated with a working load limit of 10,000 lbs. and a Grade 316 Stainless Steel rating. Construction: Stainless Steel.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
Not for overhead lifting. This item is rated for cargo securement only.
At a glance
- Working Load Limit: 10,000 lbs
- Grade: 316 Stainless Steel
- Mouth Width: 1.63"
- Material: Stainless Steel
| SKU | SPAS1-DFSS |
|---|---|
| Shipping weight | 5.2 lbs |
| Working Load Limit (lbs.) | 10000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | No - overhead lifting rated stainless steel options are available by request . |
| Grade | 316 Stainless Steel |
| Inside Height | 3.75" |
| Mouth Width | 1.63" |
| Shackle Size | 1" |
| Pin Size | 1-1/8" |
| Material | Stainless Steel |
| Product Weight | 5.2 lbs. |
| Brand Part Number | 2711SF-25 |
| Additional Info | WLL (tons): 5 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
