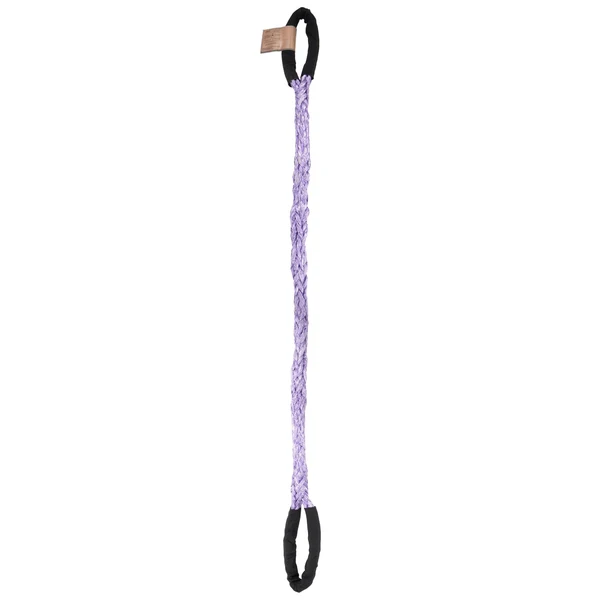

1 / 5 1-5/8" x 20' Plasma® Eye & Eye Sling
The 1-5/8" x 20' Plasma® Eye & Eye Sling is part of our Plasma Slings line in the Plasma department. Construction: HMPE.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Eye Length: 18"
- Length: 20'
- 30 Degree Capacity: 58,200 lbs.
- 45 Degree Capacity: 82,300 lbs.
- 60 Degree Capacity: 100,800 lbs.
- Vertical Capacity: 58,200 lbs.
| SKU | 1-58-EE-UHMPE-20 |
|---|---|
| Shipping weight | 19.7 lbs |
| Safety Factor | 5:1 |
| 30 Degree Capacity | 58,200 lbs. |
| 45 Degree Capacity | 82,300 lbs. |
| 60 Degree Capacity | 100,800 lbs. |
| Vertical Capacity | 58,200 lbs. |
| Choker Capacity | 40,700 lbs. |
| Basket Capacity | 116,400 lbs. |
| Diameter | 1-5/8" |
| Eye Length | 18" |
| Length | 20' |
| Rope Construction | 12x12 |
| Material | HMPE |
| Product Weight | 19.7 lbs. |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
