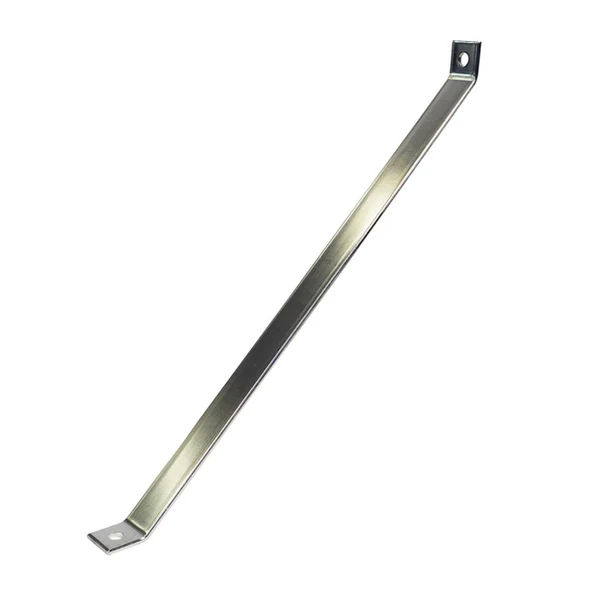

16" Corner Brace - Electro-Galvanized
$12.99
Width1-5/8"
Length16"
Hole Diameter9/16"
MaterialCarbon Steel
In stock — ready to ship
Secure checkout with Stripe
Parcel or LTL freight, all 50 states
The 16" Corner Brace - Electro-Galvanized is part of our Shelf Brackets and Braces line in the Shelf Brackets and Braces department. Construction: Carbon Steel with a electro-galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Width: 1-5/8"
- Length: 16"
- Hole Diameter: 9/16"
- Material: Carbon Steel
| SKU | FS-5472-16-E/G |
|---|---|
| Shipping weight | 2.3 lbs |
| Width | 1-5/8" |
| Length | 16" |
| Hole Diameter | 9/16" |
| Thickness | 1/4" |
| Hole Spacing End Distance | 13/16" |
| Hole Spacing Center to Center | 1-7/8" |
| Material | Carbon Steel |
| Finish | Electro-Galvanized |
| Type | Electro-Galvanized Carbon Steel |
| Standards | Finish = ASTM B-633 (Type III SC1 (0.2 mil thickness)) & Material = ASTM A575 or ASTM A1011 Grade 33 |
| Manufacturer Name | Flex-Strut |
