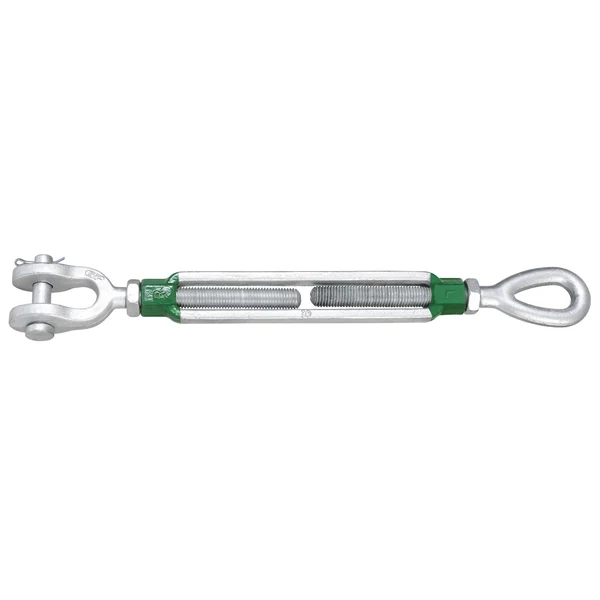

1 / 8 2-3/4" x 24" Van Beest® Jaw & Eye Galvanized Turnbuckle - G-6315
The 2-3/4" x 24" Van Beest® Jaw & Eye Galvanized Turnbuckle - G-6315 is part of our Van Beest Galvanized Jaw & Eye line in the Turnbuckles department. It is rated with a working load limit of 75,000 lbs. Construction: Drop-forged high tensile steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 75,000 lbs
- Length Closed: 55-3/32"
- Length Open: 76-29/32"
- Body Length: 24"
- Diameter: 2-3/4"
- Material: Drop-forged high tensile steel
| SKU | JETBGV234X24-VB |
|---|---|
| Shipping weight | 200 lbs |
| Working Load Limit (lbs.) | 75000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 2-3/4" |
| Length Closed | 55-3/32" |
| Length Open | 76-29/32" |
| Body Length | 24" |
| Jaw Opening | 3-9/16" |
| Turnbuckle Size | 2-3/4" x 24" |
| Pin Size | 2-3/4" |
| Material | Drop-forged high tensile steel |
| Finish | Galvanized |
| Product Weight | 200 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
| Manufacturer Name | Van Beest |
| Brand Part Number | SSGPGO6924 |
| Additional Info | Jaw end fitted with cotter pin |
