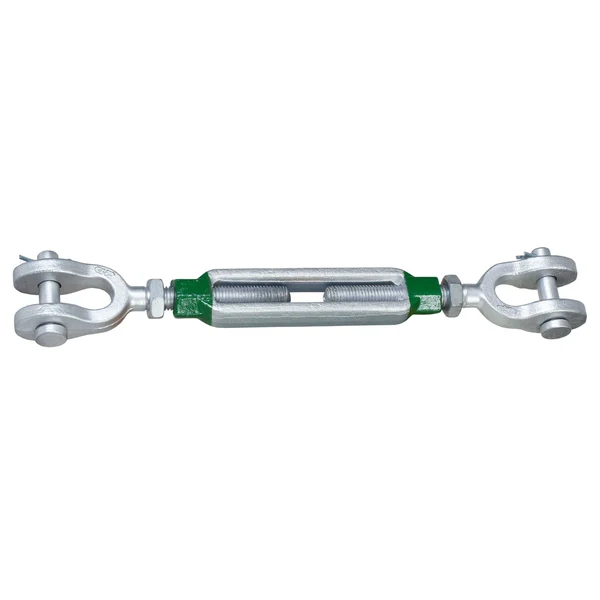

1 / 8 2" x 24" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313
The 2" x 24" Van Beest® Jaw & Jaw Galvanized Turnbuckle - G-6313 is part of our Van Beest Galvanized Jaw & Jaw line in the Turnbuckles department. It is rated with a working load limit of 37,000 lbs. Construction: Drop-forged high tensile steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 37,000 lbs
- Length Closed: 52-11/16"
- Length Open: 65-25/32"
- Body Length: 24"
- Diameter: 2"
- Material: Drop-forged high tensile steel
| SKU | JJTBGV2X24-VB |
|---|---|
| Shipping weight | 100.1 lbs |
| Working Load Limit (lbs.) | 37000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 2" |
| Length Closed | 52-11/16" |
| Length Open | 65-25/32" |
| Body Length | 24" |
| Jaw Opening | 2-1/2" |
| Turnbuckle Size | 2" x 24" |
| Pin Size | 2" |
| Material | Drop-forged high tensile steel |
| Finish | Galvanized |
| Product Weight | 100.1 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
| Manufacturer Name | Van Beest |
| Brand Part Number | SSGPGG5024 |
| Additional Info | Jaw end fitted with cotter pin |
