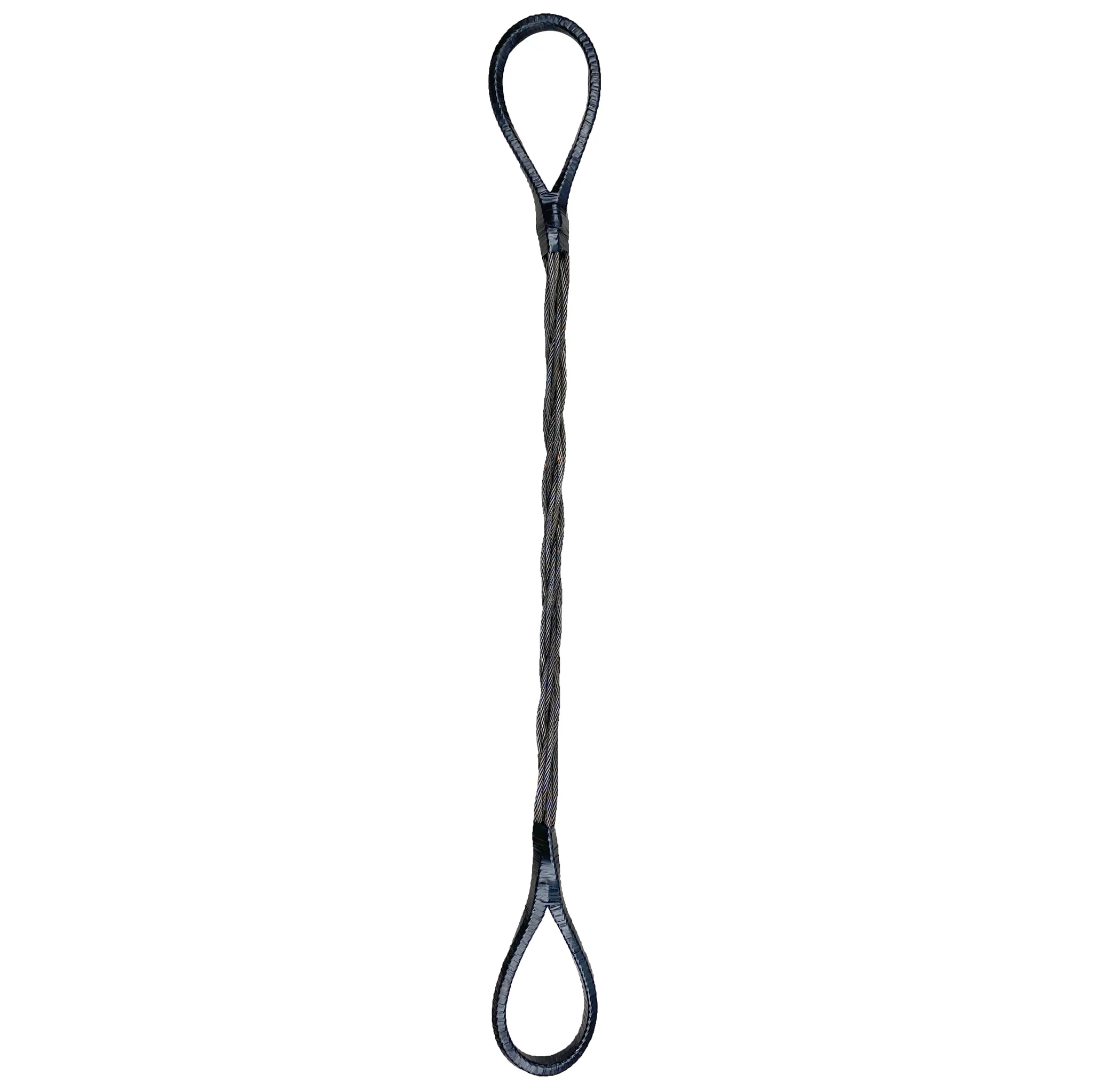

1 / 3 3/8" x 16' Nine Part Braided Wire Rope Sling
The 3/8" x 16' Nine Part Braided Wire Rope Sling is part of our Type 915 Nine Part Braid Slings line in the Wire Rope Slings department.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Eye Length: 14"
- Length: 16'
- Vertical Capacity: 8.5 ton
- Choker Capacity: 7.4 ton
- Basket Capacity: 17 ton
- Diameter: 3/8"
| SKU | 9PBS-38-16 |
|---|---|
| Shipping weight | 100 lbs |
| Safety Factor | 5:1 |
| Vertical Capacity | 8.5 ton |
| Choker Capacity | 7.4 ton |
| Basket Capacity | 17 ton |
| Diameter | 3/8" |
| Eye Length | 14" |
| Length | 16' |
| Body Diameter | 1-11/16" |
| Wire Rope Class | 6x36WS |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
