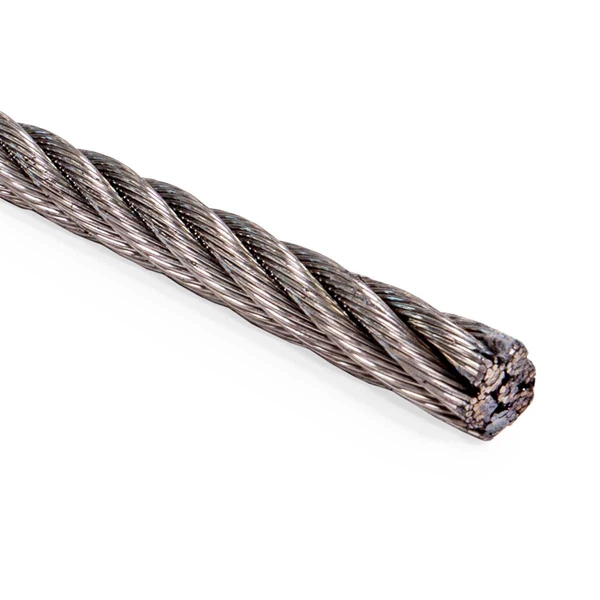

1 / 6 5/16" 7x19 Stainless Steel Aircraft Cable - Type 316 | Linear Foot
The 5/16" 7x19 Stainless Steel Aircraft Cable - Type 316 - Linear Foot is part of our 7x19 Stainless Type 316 Wire Rope line in the Wire Rope department. It is rated with a break strength of 4.005 tons / 8,010 lbs. and a Grade 316 Stainless Steel rating.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Assembly Break Strength: 4.005 tons / 8,010 lbs.
- Grade: 316 Stainless Steel
- Length: 1'
- Wire Rope Diameter: 5/16"
| SKU | 719SSAC316-516 |
|---|---|
| Shipping weight | 0.5 lbs |
| Assembly Break Strength | 4.005 tons / 8,010 lbs. |
| Rated for Overhead Lifting | Yes |
| Grade | 316 Stainless Steel |
| Wire Rope Diameter | 5/16" |
| Length | 1' |
| Wire Rope Class | 7x19 |
| Product Weight | 0.5 lbs. |
| Weight Per Foot | 0.17 |
| Standards | Meets all dimensional and strength requirements of Federal Specification RR-W-410 (latest revision) and ASTM A1023 |
| Additional Info | Right Hand Regular Lay Not intended for Aircraft Use |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
