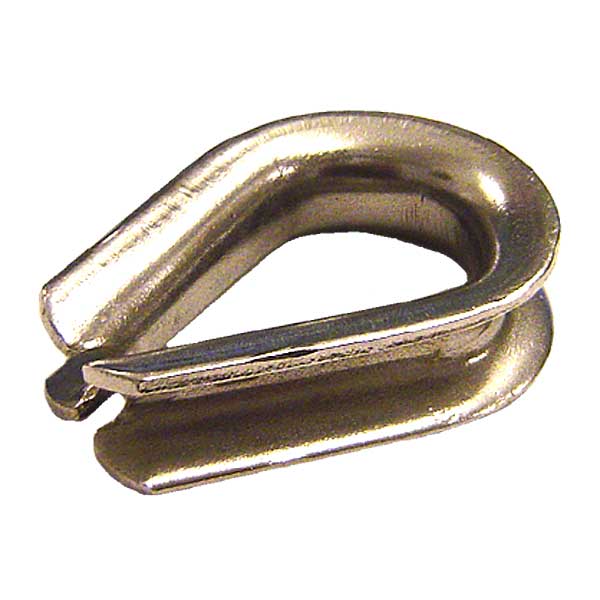

5/8" Stainless Steel Thimble | Type 304 - Heavy-Duty
The 5/8" Stainless Steel Thimble - Type 304 - Heavy-Duty is part of our Stainless Steel Type 304 line in the Wire Rope Thimbles department. Construction: 304 Stainless Steel.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Width: 3.12"
- Inside Width: 1.75"
- Length: 4.25"
- Inside Length: 3.25"
- Wire Rope Diameter: 5/8"
- Material: 304 Stainless Steel
| SKU | SS304HDT58 |
|---|---|
| Shipping weight | 6.8 lbs |
| Wire Rope Diameter | 5/8" |
| Width | 3.12" |
| Length | 4.25" |
| Inside Length | 3.25" |
| Inside Width | 1.75" |
| Material | 304 Stainless Steel |
| Style | Heavy-Duty |
| Product Weight | 0.6 lbs. |
| Standards | Meets or exceeds ASTM A148 & ASME B30.26 requirements. |
| Brand Part Number | 001300-02660 |
| Quantity | Single |
