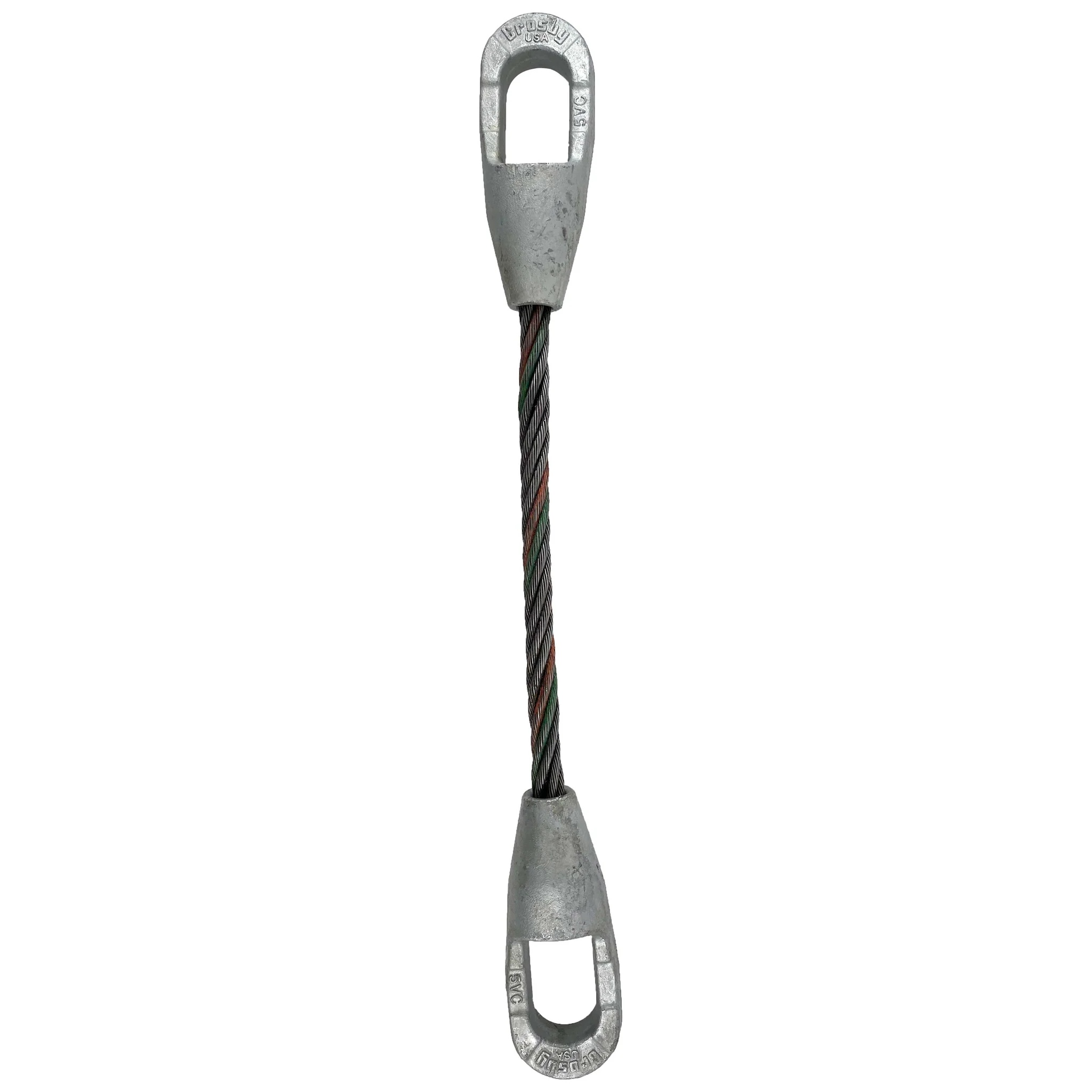

1 / 4 5/8" x 12' Closed and Closed Spelter Socket Wire Rope Sling
The 5/8" x 12' Closed and Closed Spelter Socket Wire Rope Sling is part of our Type 110 Spelter Socket line in the Wire Rope Slings department. It is rated with a working load limit of 8,240 lbs. and a break strength of 20.6 ton.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 8,240 lbs
- Assembly Break Strength: 20.6 ton
- Length: 12'
- Diameter: 5/8"
| SKU | SPS-CSCS-58-12 |
|---|---|
| Shipping weight | 20 lbs |
| Working Load Limit (lbs.) | 8240 |
| Assembly Break Strength | 20.6 ton |
| Safety Factor | 5:1 |
| Diameter | 5/8" |
| Length | 12' |
| Wire Rope Class | 6x36WS |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
| Additional Info | WLL (tons): 4.12 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
