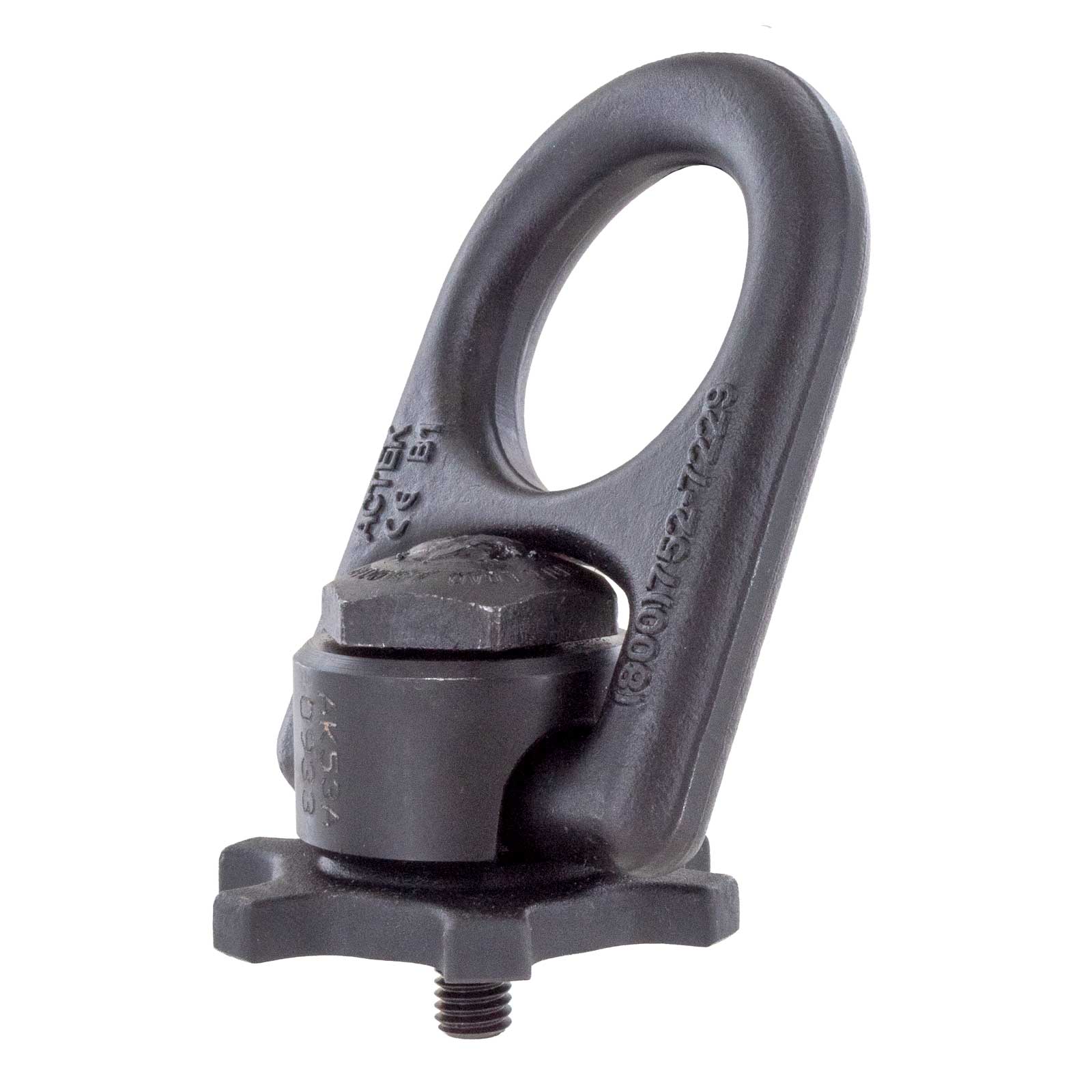

1 / 6 Actek 3/4"-10 E=1-1/2 Speed Base Forged Hoist Ring - 7,000 lbs. WLL
The Actek 3/4"-10 E=1-1/2 Speed Base Forged Hoist Ring - 7,000 lbs. WLL is part of our Acteck Speed Base Hoist Rings line in the Lifting Points department. It is rated with a working load limit of 7,000 lbs. Construction: Alloy Steel with a black oxide finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 7,000 lbs
- Diameter: 3/4" - 10 Bolt
- Material: Alloy Steel
| SKU | SBHR-34-10-E112-AC |
|---|---|
| Shipping weight | 11 lbs |
| Working Load Limit (lbs.) | 7000 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 3/4" - 10 Bolt |
| Thread Type | UNC |
| Material | Alloy Steel |
| Finish | Black Oxide |
| Torque | No torque wrench required. |
| Product Weight | 11 lbs. |
| Standards | Meets or exceeds ASME B30.26 requirements. |
| Manufacturer Name | Actek® |
| Brand Part Number | AK42202 |
| Additional Info | Effective Thread Projection: 1-1/2 in |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
