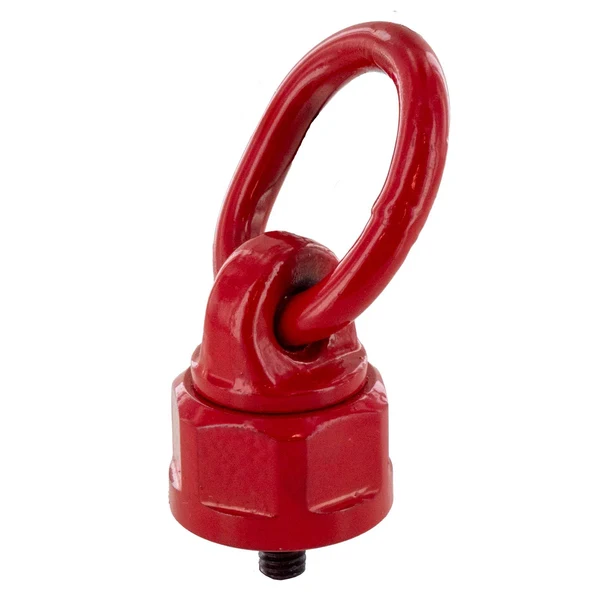

1 / 6 Actek M45X4.50 E=68mm Ultra Lifting Ring - 10,000 kgs
The Actek M45X4.50 E=68mm Ultra Lifting Ring - 10,000 kgs is part of our Metric Swivel Hoist Rings line in the Lifting Points department. It is rated with a working load limit of 22,000 lbs. Construction: painted finish finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 22,000 lbs
- Length: 68mm Bolt
- Diameter: M45x4.50
| SKU | ULR-45-450-68-AC |
|---|---|
| Shipping weight | 13 lbs |
| Working Load Limit (lbs.) | 22000 |
| Safety Factor | 4:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | M45x4.50 |
| Length | 68mm Bolt |
| Thread Type | Metric |
| Finish | Painted Finish |
| Product Weight | 14 lbs. |
| Standards | Meets or exceeds EN1677-4 European Standards requirements. |
| Manufacturer Name | Actek® |
| Brand Part Number | AK44367 |
| Additional Info | WLL (kgs.): 10,000 |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
