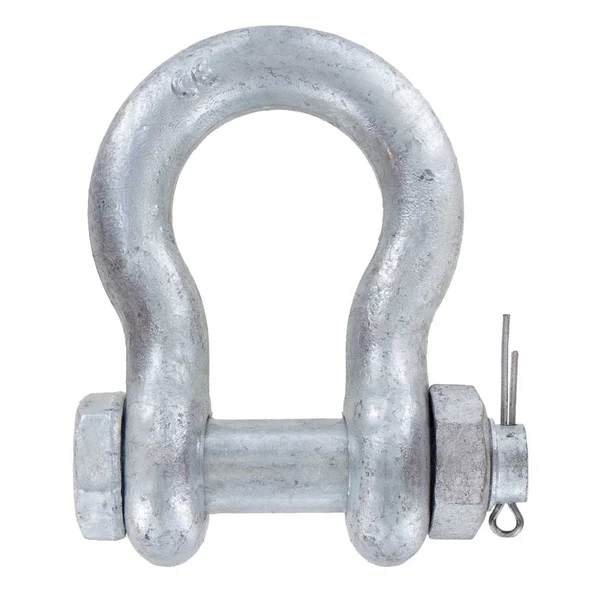

1 / 8 7/8" Galvanized Bolt Type Anchor Shackle - 6.5 Ton
The 7/8" Galvanized Bolt Type Anchor Shackle - 6.5 Ton is part of our Galvanized Bolt Type Shackles line in the Shackles department. It is rated with a working load limit of 13,000 lbs. Construction: Carbon Steel Shackle Alloy Pin with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 13,000 lbs
- Inside Width: 2.28"
- Mouth Width: 1.44"
- Material: Carbon Steel Shackle Alloy Pin
| SKU | BTAS78 |
|---|---|
| Shipping weight | 4.2 lbs |
| Working Load Limit (lbs.) | 13000 |
| Safety Factor | 6:1 |
| Inside Width | 2.28" |
| Inside Height | 3.31" |
| Mouth Width | 1.44" |
| Shackle Size | 7/8" |
| Pin Size | 1" |
| Material | Carbon Steel Shackle Alloy Pin |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | 3.6 lbs. |
| Standards | Meets or exceeds all requirements of Federal Specification RR-C-271 & ASTM A148M. |
| Additional Info | WLL (tons): 6.5 |
