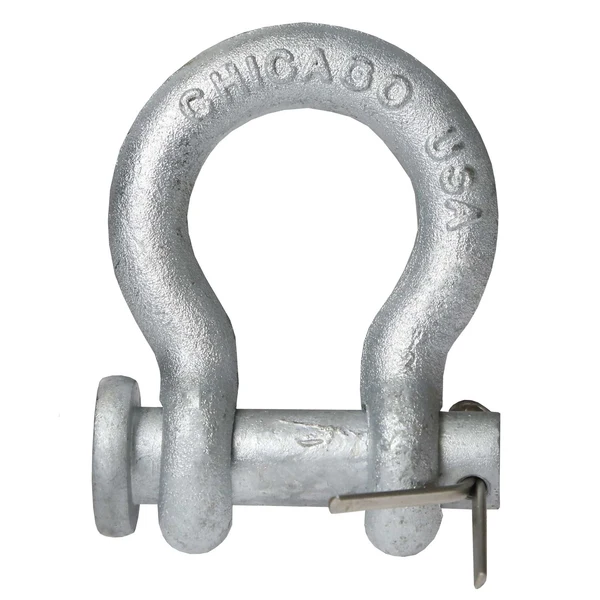

Anchor Shackle - Chicago Hardware - Round Pin - 3/8" Galvanized Steel - 1 Ton

Name: Anchor Shackle - Chicago Hardware - Round Pin - 3/8" Galvanized Steel - 1 Ton
Brand: Heavy Haul Rigging
SKU: RPAS38-D
Availability: InStock

SKU: RPAS38-D Chicago Hardware Shackles More Made in America - Round Pin Anchor Shackles ›

$13.04

Working Load Limit2,000 lbs

Inside Width1.12"

Mouth Width0.66"

MaterialDrop-Forged Steel

In stock — ready to ship

No payment online — we contact you to arrange payment

Parcel or LTL freight, all 50 states

Download spec sheet (PDF)

Bulk pricing — request a quote

Final sale. For safety reasons this item can't be returned once shipped. Return policy

The Anchor Shackle - Chicago Hardware - Round Pin - 3/8" Galvanized Steel - 1 Ton is part of our Made in America - Round Pin Anchor Shackles line in the Shackles department. It is rated with a working load limit of 2,000 lbs. Construction: Drop-Forged Steel with a galvanized finish.

Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.

At a glance

Working Load Limit: 2,000 lbs
Inside Width: 1.12"
Mouth Width: 0.66"
Material: Drop-Forged Steel

SKU	RPAS38-D
Shipping weight	0.3 lbs
Working Load Limit (lbs.)	2000
Safety Factor	6:1
Inside Width	1.12"
Inside Height	1.44"
Mouth Width	0.66"
Shackle Size	3/8"
Pin Size	7/16"
Material	Drop-Forged Steel
Finish	Galvanized
Type	Round Pin Anchor
Product Weight	.3 lbs.
Standards	Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M.
Manufacturer Name	Chicago Hardware
Brand Part Number	21120 8
Additional Info	WLL (tons): 1

Spec sheet — SKU RPAS38-DPDF · ratings, dimensions, materials & safety information Load securement guideAggregate WLL rule, minimum tie-downs, chain & webbing charts Inspection & removal-from-service checklistWhat to look for before every use

Shipping

Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.

Returns

This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
