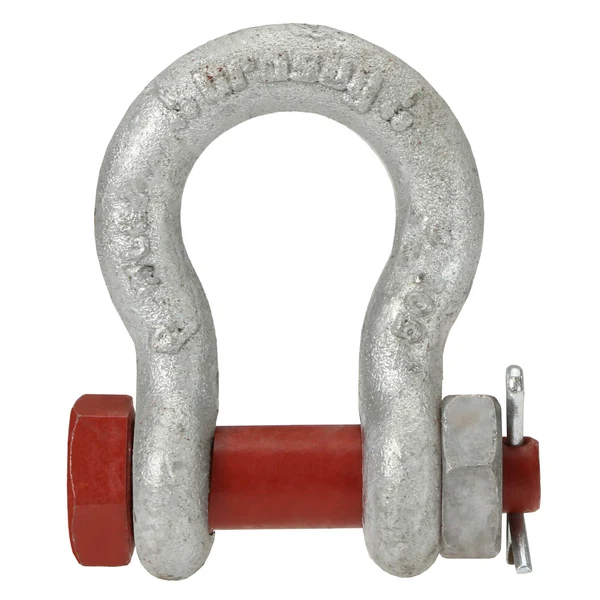

1 / 8 2-1/2" Crosby® Bolt Type Anchor Shackle | G-2130 - 55 Ton
The 2-1/2" Crosby® Bolt Type Anchor Shackle - G-2130 - 55 Ton is part of our Crosby (G-2130) - Bolt Type Anchor Shackles line in the Shackles department. It is rated with a working load limit of 121,254 lbs. Construction: Carbon Steel Shackle Alloy Steel Bolt with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 121,254 lbs
- Inside Width: 7.25"
- Mouth Width: 4.34"
| SKU | BTAS2-12-CR |
|---|---|
| Shipping weight | 98.3 lbs |
| Working Load Limit (lbs.) | 121254 |
| Safety Factor | 6:1 |
| Inside Width | 7.25" |
| Inside Height | 10.5" |
| Mouth Width | 4.34" |
| Shackle Size | 2-1/2" |
| Pin Size | 2-3/4" |
| Material | Carbon Steel Shackle Alloy Steel Bolt |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | 98.3 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1019695 |
| Additional Info | WLL (tons): 55 |
