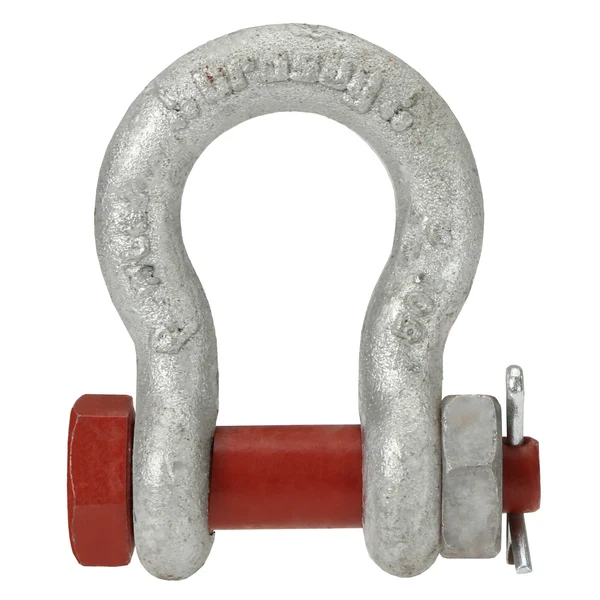

1 / 8 5/16" Crosby® Bolt Type Anchor Shackle | G-2130 - 0.75 Ton
The 5/16" Crosby® Bolt Type Anchor Shackle - G-2130 - 0.75 Ton is part of our Crosby (G-2130) - Bolt Type Anchor Shackles line in the Shackles department. It is rated with a working load limit of 1,653 lbs. Construction: Carbon Steel Shackle Alloy Steel Bolt with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 1,653 lbs
- Inside Width: 0.84"
- Mouth Width: 0.53"
| SKU | BTAS516-CR |
|---|---|
| Shipping weight | 0.2 lbs |
| Working Load Limit (lbs.) | 1653 |
| Safety Factor | 6:1 |
| Inside Width | 0.84" |
| Inside Height | 1.22" |
| Mouth Width | 0.53" |
| Shackle Size | 5/16" |
| Pin Size | 3/8" |
| Material | Carbon Steel Shackle Alloy Steel Bolt |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | .2 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1019468 |
| Additional Info | WLL (tons): 0.75 |
