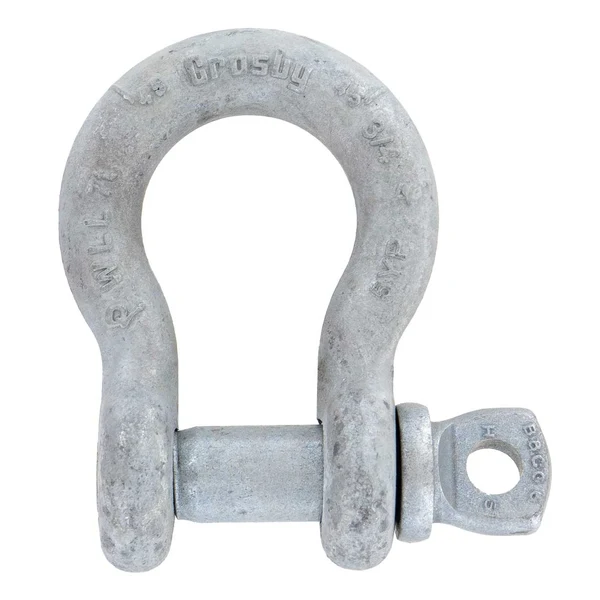

1 / 8 5/8" Crosby® Alloy Screw Pin Anchor Shackle | G-209A - 5 Ton
The 5/8" Crosby® Alloy Screw Pin Anchor Shackle - G-209A - 5 Ton is part of our Crosby (G-209A) - Alloy Screw Pin Anchor Shackles line in the Shackles department. It is rated with a working load limit of 11,023 lbs. Construction: Alloy Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 11,023 lbs
- Inside Width: 1.69"
- Mouth Width: 1.06"
- Material: Alloy Steel
| SKU | SPASA58-CR |
|---|---|
| Shipping weight | 1.4 lbs |
| Working Load Limit (lbs.) | 11023 |
| Safety Factor | 4.5:1 |
| Inside Width | 1.69" |
| Inside Height | 2.38" |
| Mouth Width | 1.06" |
| Shackle Size | 5/8" |
| Pin Size | 3/4" |
| Material | Alloy Steel |
| Finish | Galvanized |
| Type | Screw Pin Anchor |
| Product Weight | 1.4 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1017516 |
| Additional Info | WLL (tons): 5 |
