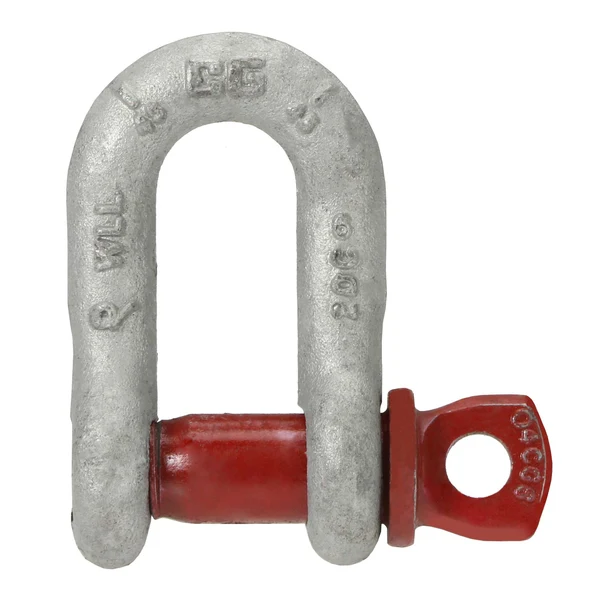

1 / 6 1-1/2" Crosby® Screw Pin Chain Shackle | G-210 - 17 Ton
The 1-1/2" Crosby® Screw Pin Chain Shackle - G-210 - 17 Ton is part of our Crosby (G-210) - Screw Pin Chain Shackles line in the Shackles department. It is rated with a working load limit of 37,478 lbs. Construction: Carbon Steel Shackle Alloy Pin with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 37,478 lbs
- Inside Width: 2.38"
- Mouth Width: 2.38"
- Material: Carbon Steel Shackle Alloy Pin
| SKU | SPCS1-12-CR |
|---|---|
| Shipping weight | 16 lbs |
| Working Load Limit (lbs.) | 37478 |
| Safety Factor | 6:1 |
| Inside Width | 2.38" |
| Inside Height | 4.87" |
| Mouth Width | 2.38" |
| Shackle Size | 1-1/2" |
| Pin Size | 1-5/8" |
| Material | Carbon Steel Shackle Alloy Pin |
| Finish | Galvanized |
| Type | Screw Pin Chain |
| Product Weight | 16 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26, Federal Specification RR-C-271, & ASTM A148M. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1019392 |
| Additional Info | WLL (tons): 17 |
