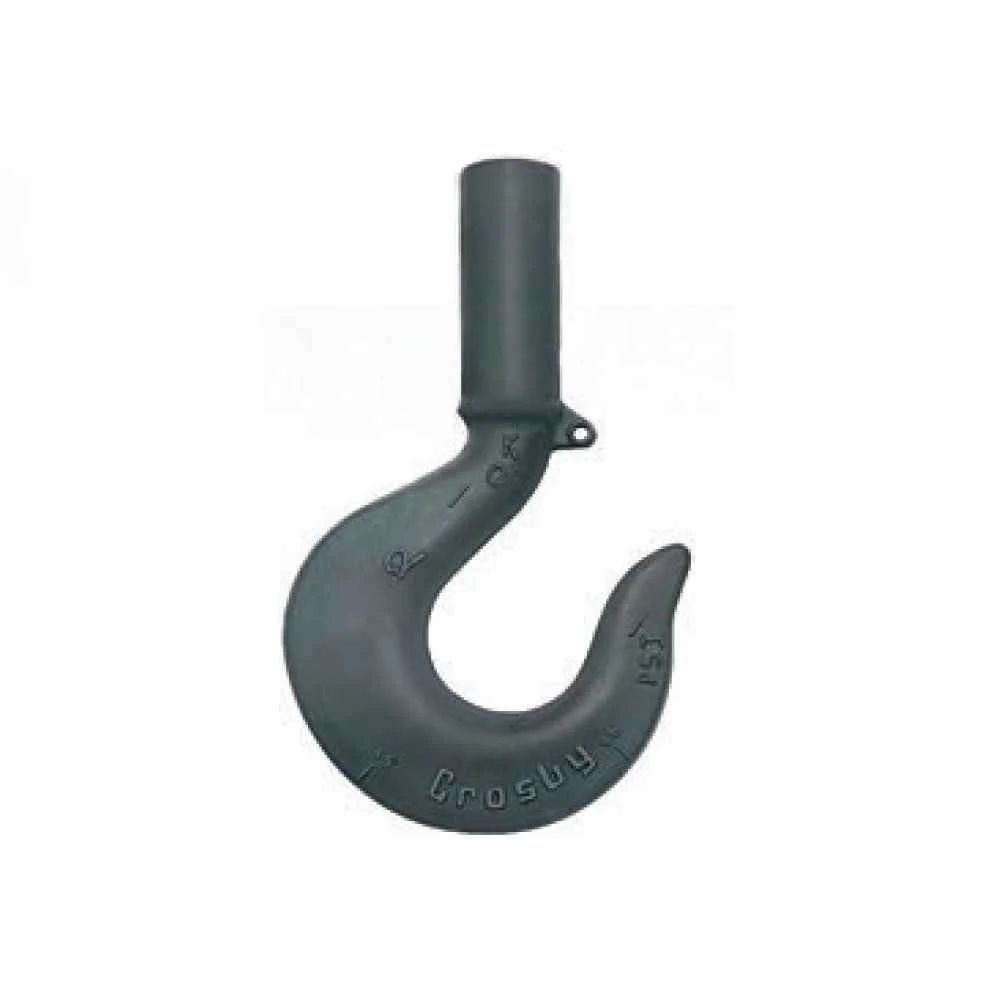

Crosby® S-319A 100 Ton Shank Hook w/Long Shank - 1025045
The Crosby® S-319A 100 Ton Shank Hook w/Long Shank - 1025045 is part of our Crosby S-319 Shank Hooks line in the Rigging Hooks department. It is rated with a working load limit of 200,000 lbs.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 200,000 lbs
- Overall Length: 48.12"
- Shank Length: 21"
| SKU | S319A-LS100T |
|---|---|
| Shipping weight | 675 lbs |
| Working Load Limit (lbs.) | 200000 |
| Safety Factor | 4:1 |
| Overall Length | 48.12" |
| Shank Length | 21" |
| Throat Opening | 5.88" |
| Hook ID | W |
| Product Weight | 675 lbs. |
| Standards | Meets or exceeds ASTM A952 / A952M & ASME B30.10 requirements. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1025045 |
| Additional Info | Overall width: 23" WLL (tons): 100 |
