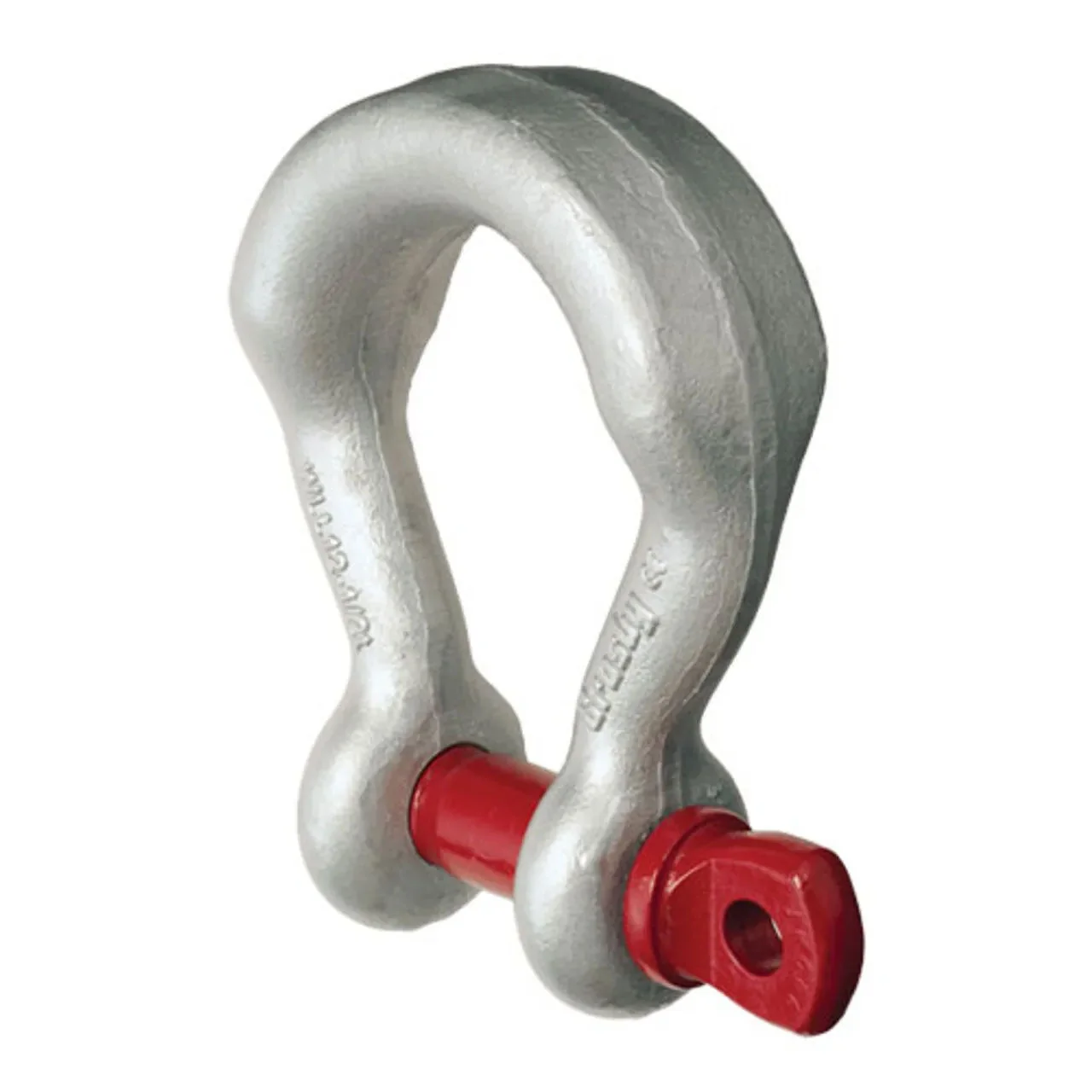

1 / 4 Crosby® Screw Pin Wide Body Shackle | G-2169 - 12.5 Ton
The Crosby® Screw Pin Wide Body Shackle - G-2169 - 12.5 Ton is part of our Crosby (G-2169) - Screw Pin Wide Body Shackles line in the Shackles department. It is rated with a working load limit of 27,557 lbs. Construction: Forged Alloy Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 27,557 lbs
- Mouth Width: 1.69"
- Material: Forged Alloy Steel
| SKU | SPWBS12-12T-CR |
|---|---|
| Shipping weight | 8.8 lbs |
| Working Load Limit (lbs.) | 27557 |
| Safety Factor | 4.5:1 |
| Inside Height | 4.63" |
| Mouth Width | 1.69" |
| Pin Size | 1-1/8" |
| Material | Forged Alloy Steel |
| Finish | Galvanized |
| Type | Screw Pin Wide Body |
| Product Weight | 8.8 lbs. |
| Standards | Meets or exceeds all requirements of ASME B30.26 & ASTM A148M. |
| Manufacturer Name | Crosby® |
| Brand Part Number | 1021673 |
| Additional Info | WLL (tons): 12.5 Outside width: 5.51" |
