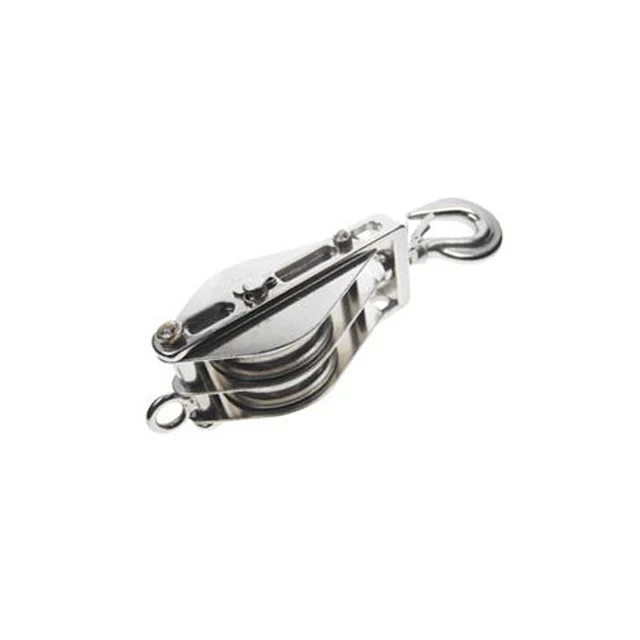

Double Swivel Block w/ Hook & Brass Bushing - 304 Stainless Steel 5/8" x 3"
The Double Swivel Block w/ Hook & Brass Bushing - 304 Stainless Steel 5/8" x 3" is part of our Double Swivel Block with Hook line in the Blocks & Pulleys department. It is rated with a working load limit of 1,450 lbs. and a break strength of 5,800 lbs.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 1,450 lbs
- Assembly Break Strength: 5,800 lbs.
- Wire Rope Diameter: 5/8"
- Sheave Diameter: 3"
| SKU | DSWIVELB58-3H |
|---|---|
| Shipping weight | 3.8 lbs |
| Working Load Limit (lbs.) | 1450 |
| Assembly Break Strength | 5,800 lbs. |
| Safety Factor | 4:1 |
| Wire Rope Diameter | 5/8" |
| Sheave Diameter | 3" |
| Type | Brass Bushing |
| Product Weight | 3.8 lbs. |
| Standards | Meets or exceeds All ASME B30.26 requirements. |
| Brand Part Number | 210S-75-A2 |
