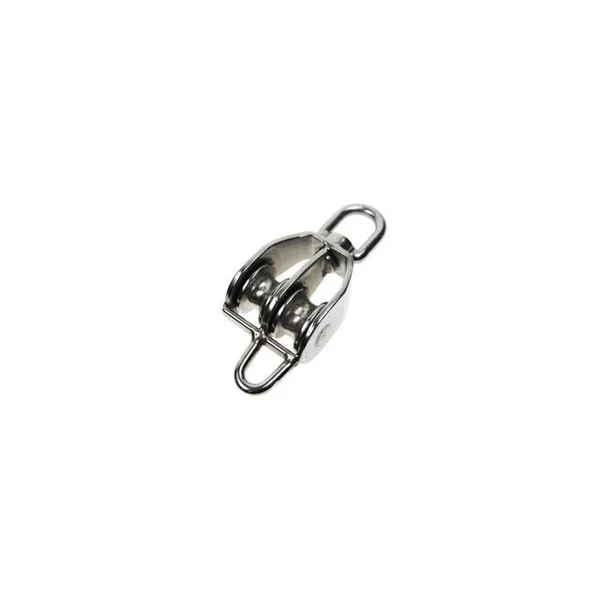

Double Swivel Eye Block w/ Loop - 304 Stainless Steel 5/16" x 1-1/4"
The Double Swivel Eye Block w/ Loop - 304 Stainless Steel 5/16" x 1-1/4" is part of our Double Swivel Eye Block with Loop line in the Blocks & Pulleys department. It is rated with a working load limit of 600 lbs. and a break strength of 2,400 lbs.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 600 lbs
- Assembly Break Strength: 2,400 lbs.
- Wire Rope Diameter: 5/16"
- Sheave Diameter: 1-1/4"
| SKU | DSEYEBLOCKL516-114 |
|---|---|
| Shipping weight | 0.65 lbs |
| Working Load Limit (lbs.) | 600 |
| Assembly Break Strength | 2,400 lbs. |
| Safety Factor | 4:1 |
| Wire Rope Diameter | 5/16" |
| Sheave Diameter | 1-1/4" |
| Type | Brass Bushing |
| Product Weight | .65 lbs. |
| Standards | Meets or exceeds All ASME B30.26 requirements. |
| Brand Part Number | 315S-L-32 |
