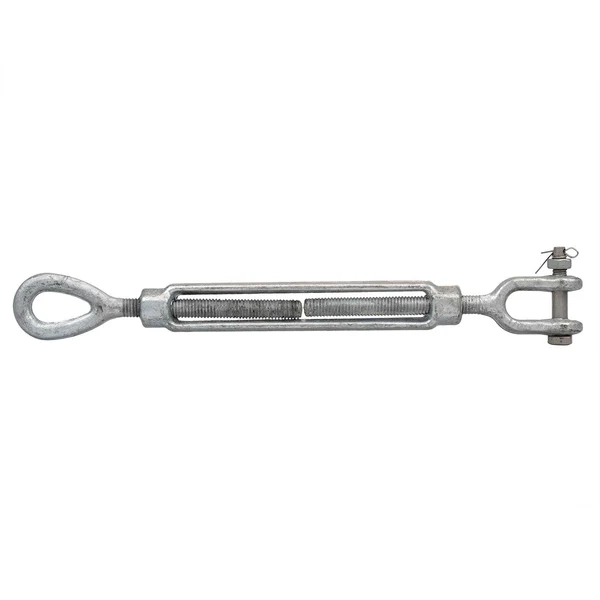

1 / 8 7/8" x 12" Jaw & Eye Galvanized Turnbuckle
The 7/8" x 12" Jaw & Eye Galvanized Turnbuckle is part of our Galvanized Jaw & Eye line in the Turnbuckles department. It is rated with a working load limit of 7,200 lbs. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 7,200 lbs
- Length Closed: 24.57"
- Length Open: 36"
- Body Length: 12"
- Diameter: 7/8"
| SKU | JETBGV78X12 |
|---|---|
| Shipping weight | 8.88 lbs |
| Working Load Limit (lbs.) | 7200 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 7/8" |
| Length Closed | 24.57" |
| Length Open | 36" |
| Body Length | 12" |
| Jaw Opening | 1.16 |
| Turnbuckle Size | 7/8" x 12" |
| Pin Size | 0.75 |
| Finish | Galvanized |
| Product Weight | 8.8 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
| Additional Info | Jaw end fitted with nut, bolt, and cotter |
