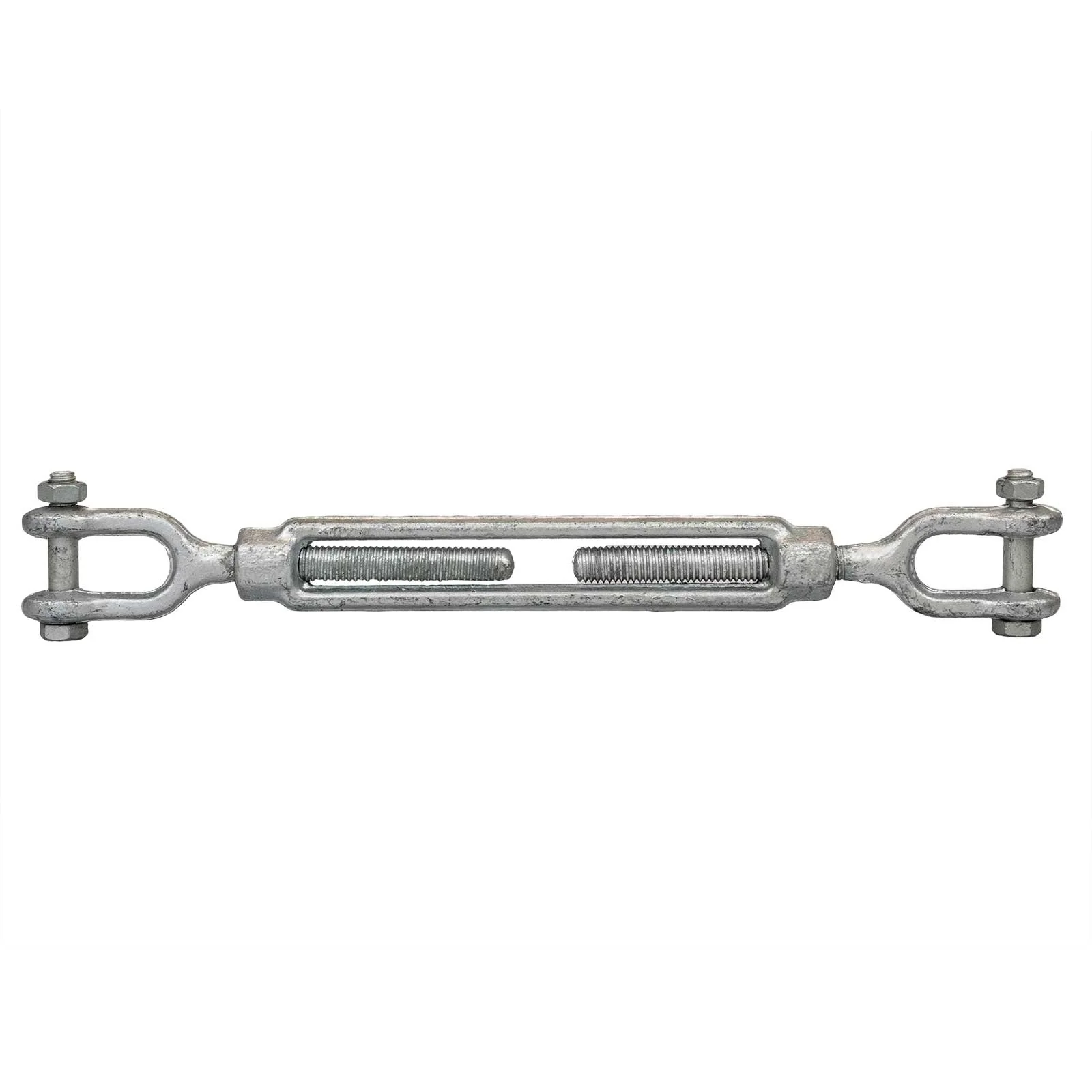

1 / 7 5/16" x 4-1/2" Jaw & Jaw Galvanized Turnbuckle
The 5/16" x 4-1/2" Jaw & Jaw Galvanized Turnbuckle is part of our Galvanized Jaw & Jaw line in the Turnbuckles department. It is rated with a working load limit of 800 lbs. Construction: galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 800 lbs
- Length Closed: 9.40"
- Length Open: 14.18"
- Body Length: 4-1/2"
- Diameter: 5/16"
| SKU | JJTBGV516X4-12 |
|---|---|
| Shipping weight | 0.58 lbs |
| Working Load Limit (lbs.) | 800 |
| Safety Factor | 5:1 |
| Rated for Overhead Lifting | Yes |
| Diameter | 5/16" |
| Length Closed | 9.40" |
| Length Open | 14.18" |
| Body Length | 4-1/2" |
| Jaw Opening | 0.5 |
| Turnbuckle Size | 5/16" x 4-1/2" |
| Pin Size | 0.24 |
| Finish | Galvanized |
| Product Weight | .6 lbs. |
| Standards | Meets or exceeds all requirements of ASTM F-1145. |
| Additional Info | Jaw end fitted with nut and bolt assembly |
