Low Headroom Adjustable Lifting Beam | 20,000 lb. Capacity | 25' to 30' Spread
$20,495.00
Working Load Limit20,000 lbs
Overall Length367"
MaterialSteel
In stock — ready to ship
Secure checkout with Stripe
Parcel or LTL freight, all 50 states
The Low Headroom Adjustable Lifting Beam - 20,000 lb. Capacity - 25' to 30' Spread is part of our Low Headroom Adjustable line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 20,000 lbs. Construction: Steel with a high visibility yellow powder coated paint finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 20,000 lbs
- Overall Length: 367"
- Material: Steel
| SKU | LBLHA20K30 |
|---|---|
| Shipping weight | 3,645 lbs |
| Working Load Limit (lbs.) | 20000 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Overall Length | 367" |
| Spread | 25' - 30' |
| Bail Dimensions | Inside Width: 4" Inside Length: 7" Top Thickness: 2" Thickness: 1.25" |
| Material | Steel |
| Finish | High visibility yellow powder coated paint |
| Product Weight | 3645 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 24517 |
| Additional Info | WLL (tons): 10 Headroom: 24.9" Spread Adjustment Increments: 6" per side |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
Unused items in original packaging can be returned within 30 days. See the return policy.
Related products
All Low Headroom Adjustable ›
80,000 lbs WLL Low Headroom Adjustable Lifting Beam | 80,000 lb. Capacity | 5' to 10' Spread
$21,975.00
20,000 lbs WLL Low Headroom Adjustable Lifting Beam | 20,000 lb. Capacity | 20' to 25' Spread
$18,425.00
60,000 lbs WLL Low Headroom Adjustable Lifting Beam | 60,000 lb. Capacity | 15' to 20' Spread
$22,575.00
40,000 lbs WLL Low Headroom Adjustable Lifting Beam | 40,000 lb. Capacity | 20' to 25' Spread
$22,645.00

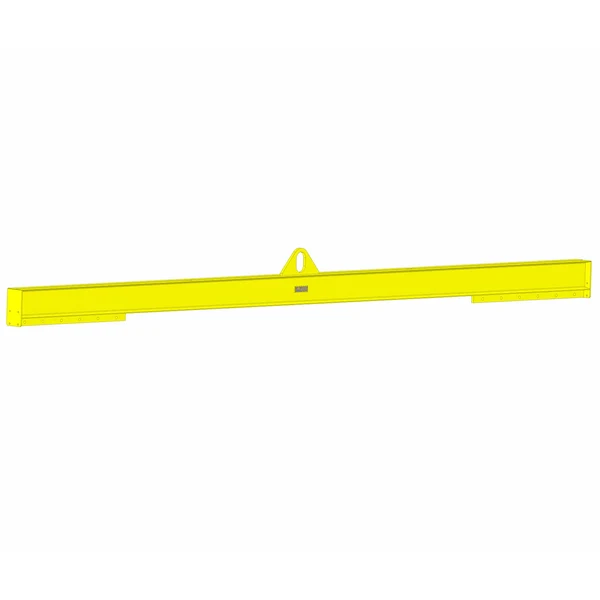

60,000 lbs WLL Low Headroom Adjustable Lifting Beam | 60,000 lb. Capacity | 10' to 15' Spread
