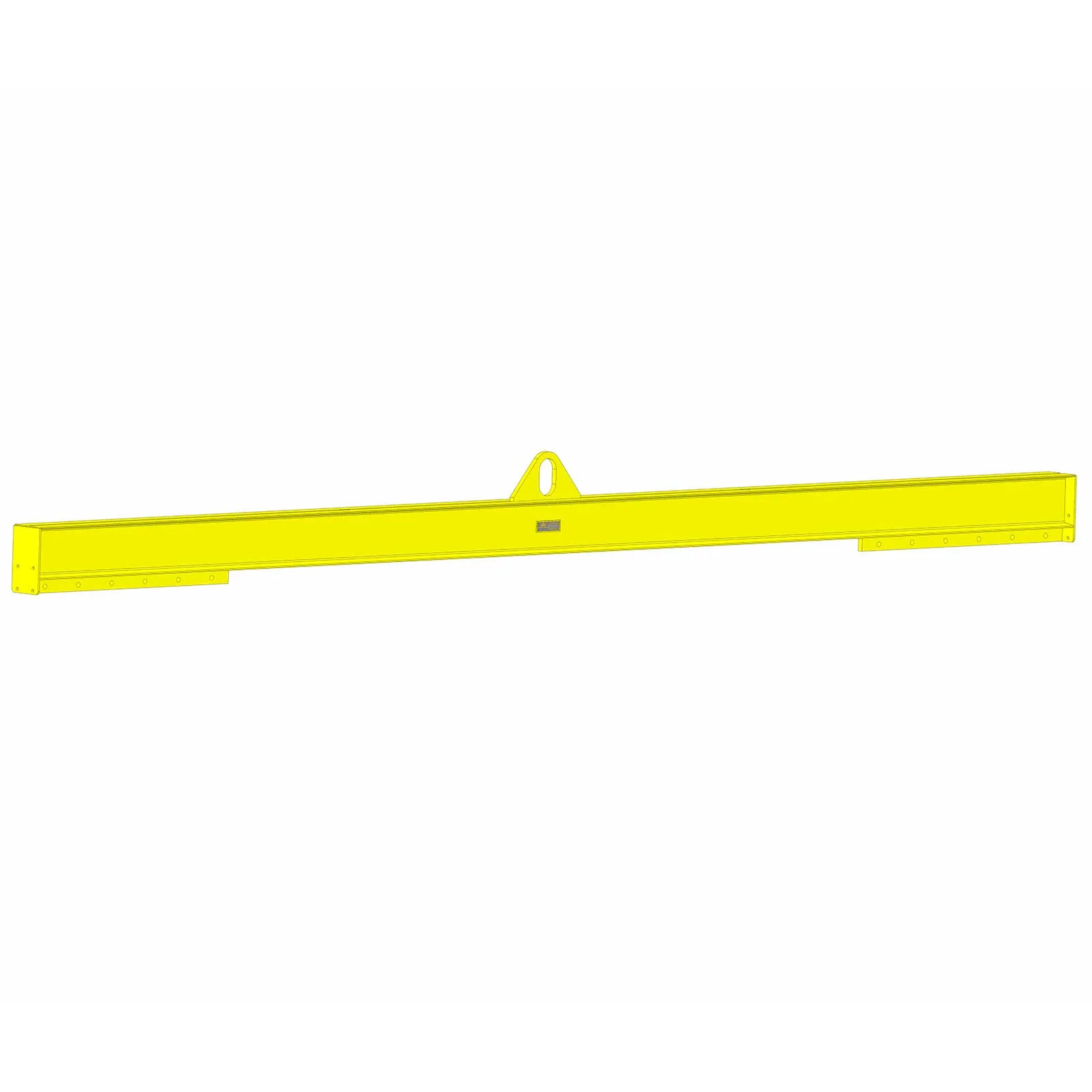

1 / 4 Low Headroom Adjustable Lifting Beam | 4,000 lb. Capacity | 5' to 10' Spread
The Low Headroom Adjustable Lifting Beam - 4,000 lb. Capacity - 5' to 10' Spread is part of our Low Headroom Adjustable line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 4,000 lbs. Construction: Steel with a high visibility yellow powder coated paint finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 4,000 lbs
- Overall Length: 126.5"
- Material: Steel
| SKU | LBLHA4K10 |
|---|---|
| Shipping weight | 346 lbs |
| Working Load Limit (lbs.) | 4000 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Overall Length | 126.5" |
| Spread | 5' - 10' |
| Bail Dimensions | Inside Width: 3" Inside Length: 5" Top Thickness: 0.88" Thickness: 0.75" |
| Material | Steel |
| Finish | High visibility yellow powder coated paint |
| Product Weight | 346 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 22153 |
| Additional Info | WLL (tons): 2 Headroom: 13" Spread Adjustment Increments: 6" per side |
