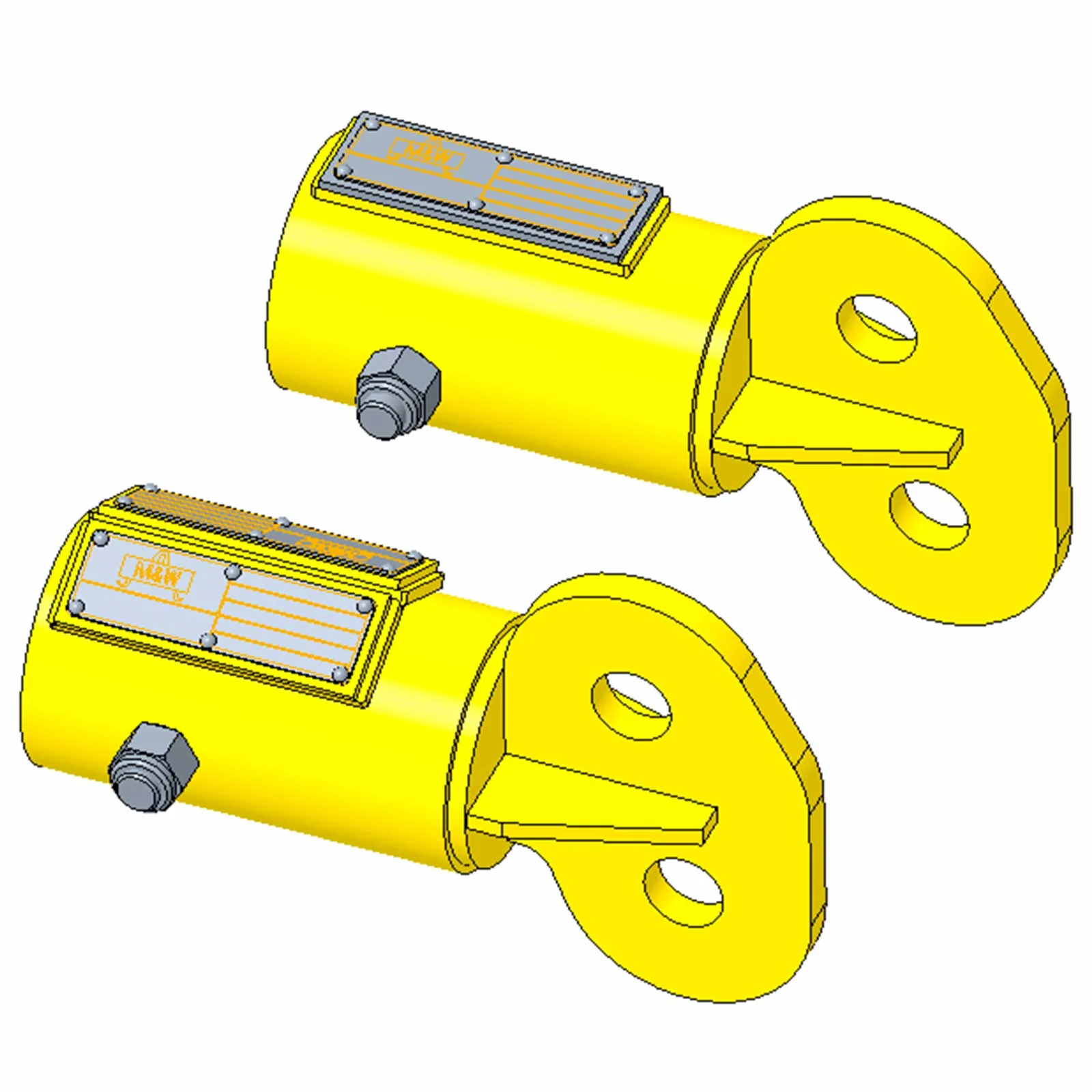

1 / 5 M&W Custom Spreader Beam End Caps - Pair | For 8" Pipe
The M&W Custom Spreader Beam End Caps - Pair - For 8" Pipe is part of our End Cap Kits line in the Lifting Beams and Spreader Bars department. Construction: Steel with a high visibility yellow powder coated paint finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Material: Steel
| SKU | SBCP8 |
|---|---|
| Shipping weight | 288 lbs |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Shackle Size | Top: 1" - 1-3/4" (not included) Bottom: 1" - 1-1/2" (not included) |
| Material | Steel |
| Finish | High visibility yellow powder coated paint |
| Type | For 8" Pipe |
| Product Weight | 288 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations when assembled to specifications using AS53 Grade B Schedule 40 pipe. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 19120 |
| Additional Info | Minimum horizontal top rigging angle of 45°; M&W recommends a min of 60° |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
