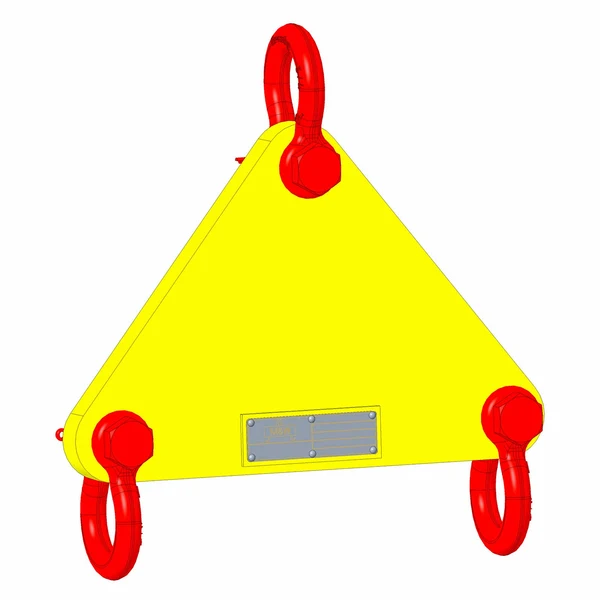

Small Length Lifting Beam (Shackle Top) - 6,000 Lb. Capacity - 2' Max Spread

Name: Small Length Lifting Beam (Shackle Top) - 6,000 Lb. Capacity - 2' Max Spread
Brand: Heavy Haul Rigging
SKU: LBSMS6K24
Availability: InStock

SKU: LBSMS6K24 Fixed Lifting Beams More Small Length Lifting Beams w/ Shackle Top ›

$1,395.00

Working Load Limit6,000 lbs

MaterialSteel

In stock — ready to ship

Pay by ACH or wire — invoice emailed

Parcel or LTL freight, all 50 states

Download spec sheet (PDF)

Bulk pricing — request a quote

Final sale. For safety reasons this item can't be returned once shipped. Return policy

The Small Length Lifting Beam (Shackle Top) - 6,000 Lb. Capacity - 2' Max Spread is part of our Small Length Lifting Beams w/ Shackle Top line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 6,000 lbs. Construction: Steel with a high visibility yellow powder coated paint finish.

Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.

At a glance

Working Load Limit: 6,000 lbs
Material: Steel

SKU	LBSMS6K24
Shipping weight	69 lbs
Working Load Limit (lbs.)	6000
Safety Factor	3:1
Rated for Overhead Lifting	Yes
Spread	2'
Shackle Size	Top shackle(s): 3/4” Bottom shackle(s): 3/4”
End Fitting	Top & Bottom Shackles Included
Material	Steel
Finish	High visibility yellow powder coated paint
Product Weight	54 lbs.
Standards	Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements.
Manufacturer Name	M&W
Brand Part Number	20365
Additional Info	WLL (tons): 3 Headroom: 14.1"
