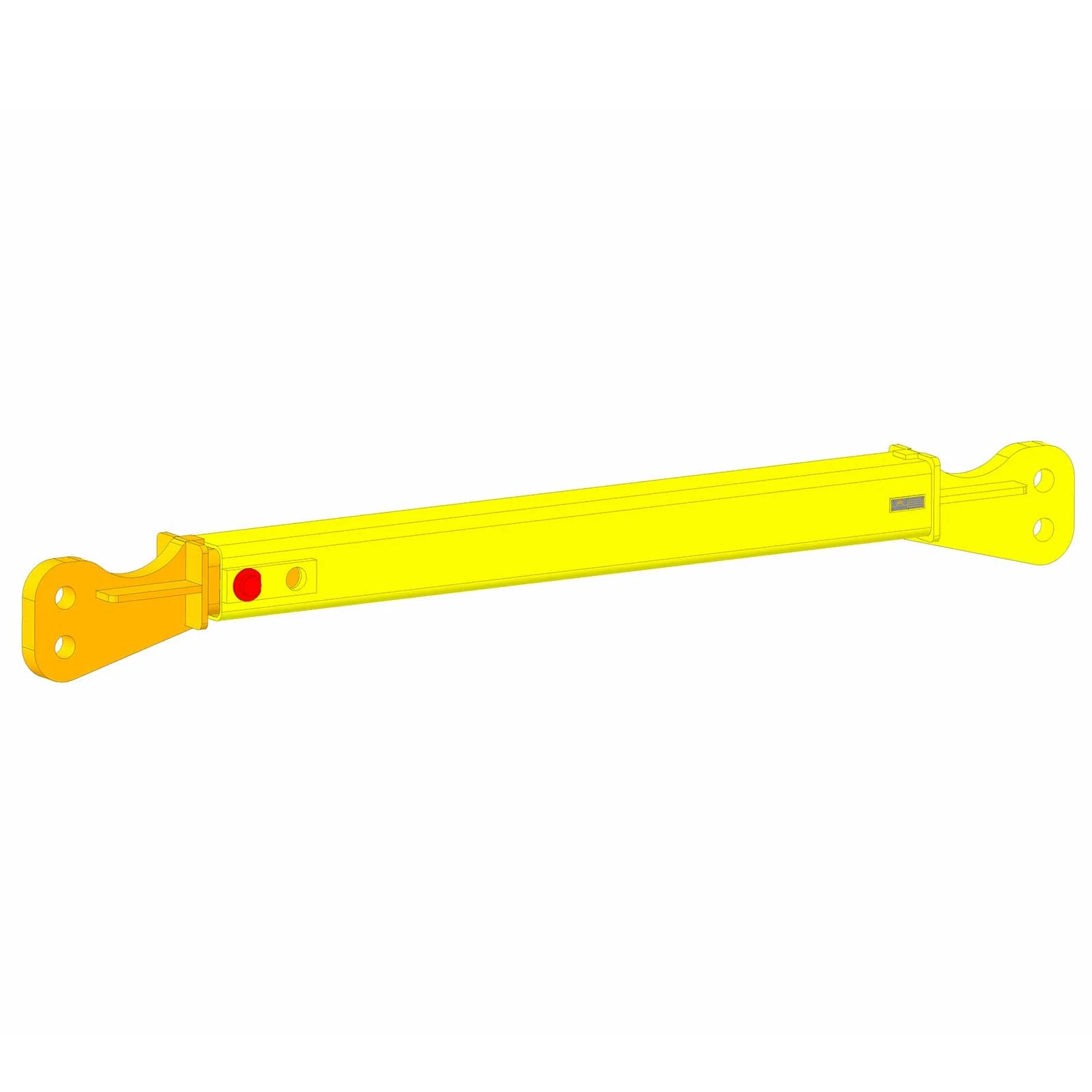

1 / 4 30 Tons x 14 - 20' Adjustable Spreader Beam
The 30 Tons x 14 - 20' Adjustable Spreader Beam is part of our Spreader Beam Adjustable 20-50 Tons line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 60,000 lbs. Construction: Steel with a high visibility yellow powder coated paint finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 60,000 lbs
- Material: Steel
| SKU | SBA60K240 |
|---|---|
| Shipping weight | 905 lbs |
| Working Load Limit (lbs.) | 60000 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Spread | 14' - 20' |
| Material | Steel |
| Finish | High visibility yellow powder coated paint |
| Product Weight | 890 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 20129 |
| Additional Info | WLL (tons): 30 Headroom: 7.1" Spread Adjustment Increments: 6" Minimum horizontal top rigging angle of 45°; M&W recommends a min of 60° |
