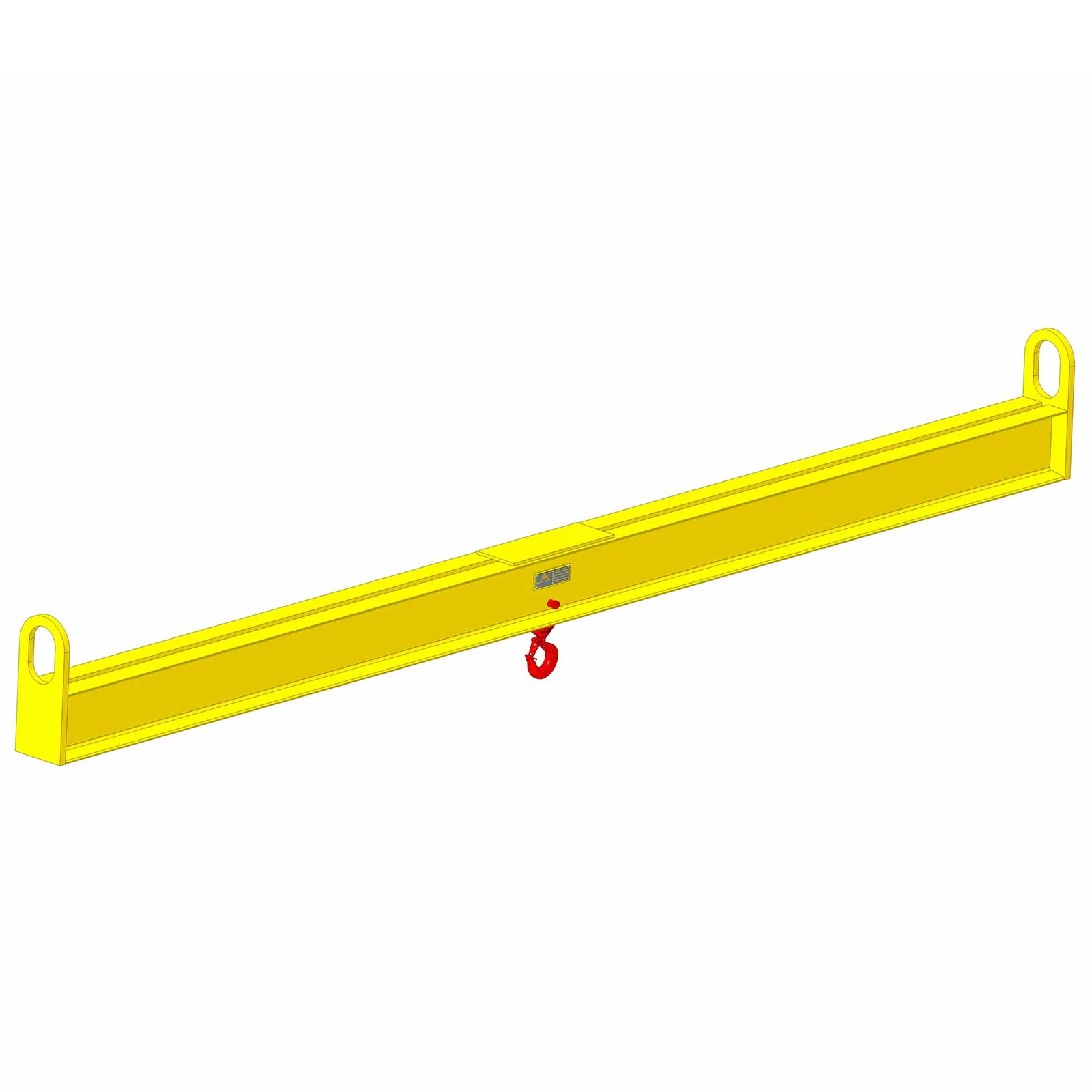

1 / 3 Twin Hoist Lifting Beam - 10,000 lb Capacity - 20' Max Spread
The Twin Hoist Lifting Beam - 10,000 lb Capacity - 20' Max Spread is part of our Twin Hoist Lifting Beams line in the Lifting Beams and Spreader Bars department. It is rated with a working load limit of 10,000 lbs. Construction: Steel with a high visibility yellow powder coated paint finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 10,000 lbs
- Material: Steel
| SKU | THLB10K20 |
|---|---|
| Shipping weight | 1,320 lbs |
| Working Load Limit (lbs.) | 10000 |
| Safety Factor | 3:1 |
| Rated for Overhead Lifting | Yes |
| Throat Opening | 1.56" |
| Spread | 20' |
| Bail Dimensions | Inside Width: 3.0" Inside Length: 5.0" Top Thickness: 1.00" Thickness: 0.75" |
| End Fitting | Bottom Swivel Latch Hook Included |
| Material | Steel |
| Finish | High visibility yellow powder coated paint |
| Product Weight | 1305 lbs. |
| Standards | Exceeds all ASME B30.20 and OSHA regulations. Proof loaded per OSHA requirements. |
| Manufacturer Name | M&W |
| Brand Part Number | 16450 |
| Additional Info | WLL (tons): 5 Headroom: 25.31" |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
