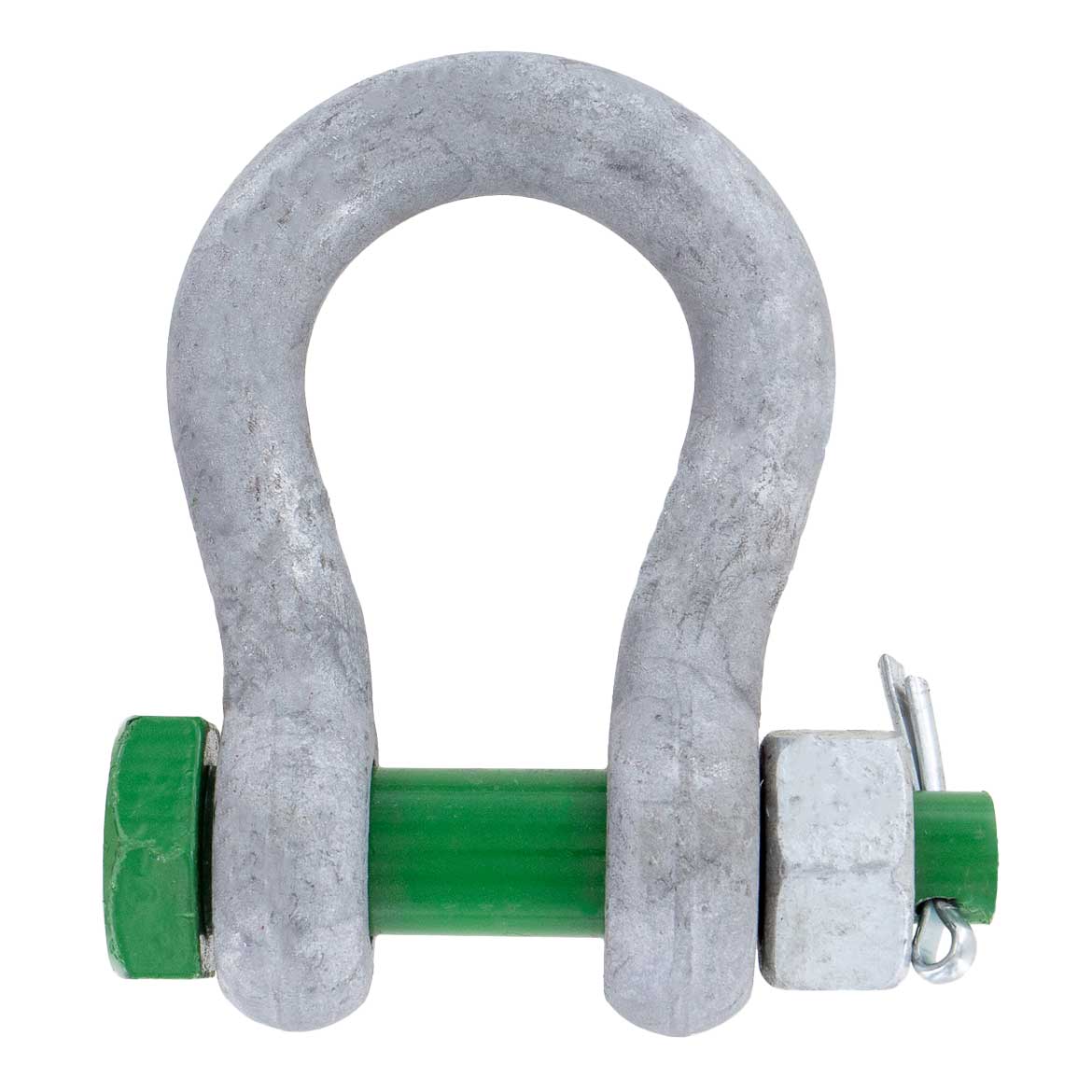

1 / 8 7/8" Van Beest Green Pin® Bolt Type Anchor Shackle | G-4163 - 6.5 Ton
The 7/8" Van Beest Green Pin® Bolt Type Anchor Shackle - G-4163 - 6.5 Ton is part of our Van Beest Bolt Type Anchor Shackles line in the Shackles department. It is rated with a working load limit of 14,330 lbs. Construction: Grade 6 High-Tensile Steel with a galvanized finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 14,330 lbs
- Inside Width: 2.28"
- Mouth Width: 1.41"
- Material: Grade 6 High-Tensile Steel
| SKU | BTAS78-VB |
|---|---|
| Shipping weight | 3.9 lbs |
| Working Load Limit (lbs.) | 14330 |
| Safety Factor | 6:1 |
| Inside Width | 2.28" |
| Inside Height | 3.28" |
| Mouth Width | 1.41" |
| Shackle Size | 7/8" |
| Pin Size | 1" |
| Material | Grade 6 High-Tensile Steel |
| Finish | Galvanized |
| Type | Bolt Type Anchor |
| Product Weight | 3.9 lbs. |
| Standards | Meets or exceeds all requirements of EN13889, ASME B30.26, ASTM A148M, and Federal Specification RR-C-271. |
| Manufacturer Name | Van Beest |
| Brand Part Number | GPGHMB22 |
| Additional Info | WLL (tons): 6.5 |
