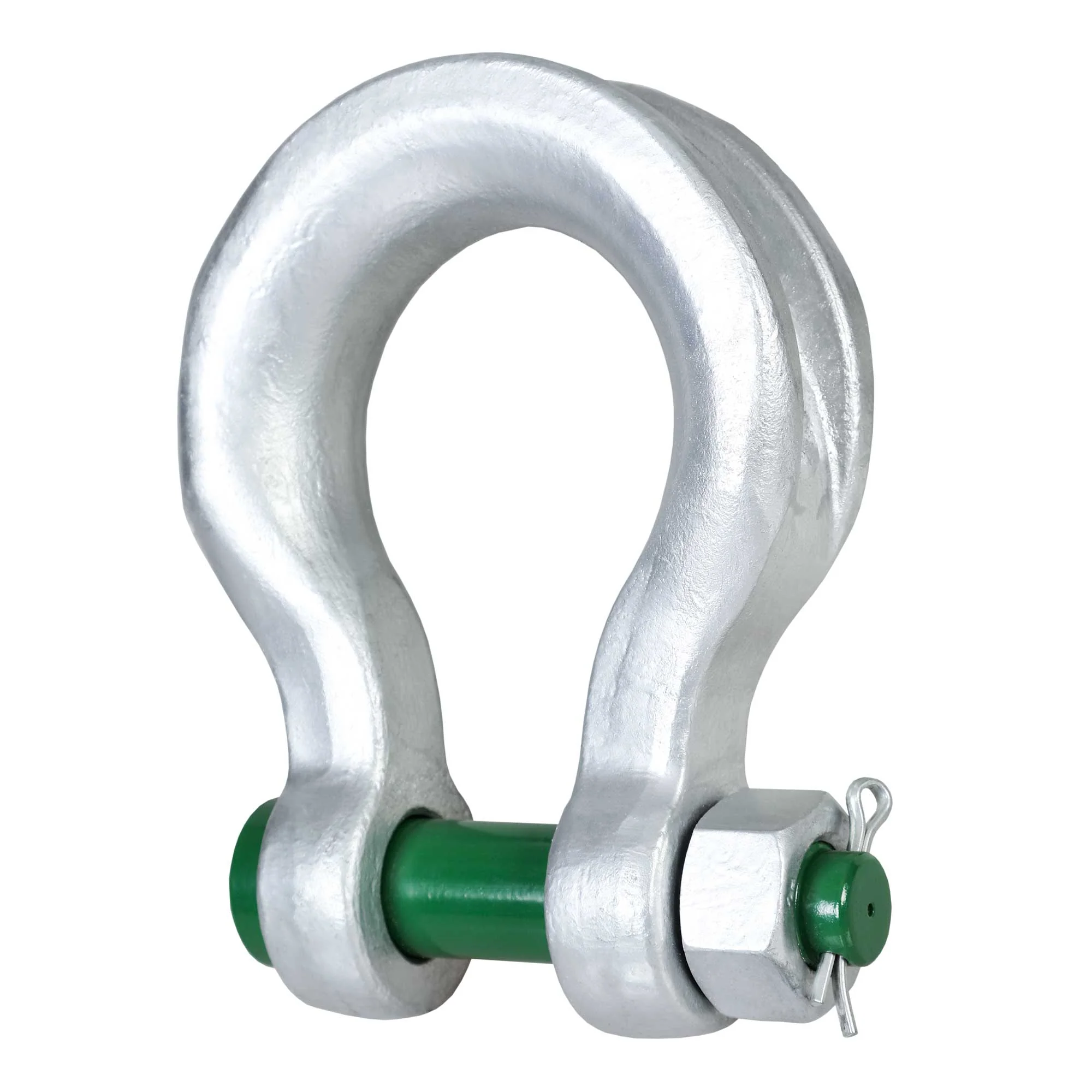

1 / 7 Van Beest Green Pin Bolt Type Wide Body Sling Shackle | P-6033 - 40 Ton
The Van Beest Green Pin Bolt Type Wide Body Sling Shackle - P-6033 - 40 Ton is part of our Van Beest Wide Body Sling Shackles line in the Shackles department. It is rated with a working load limit of 88,184 lbs. Construction: Alloy Steel with a painted finish.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Working Load Limit: 88,184 lbs
- Inside Width: 5.5"
- Mouth Width: 3.31"
- Material: Alloy Steel
| SKU | ABTWBSS2-532-VB |
|---|---|
| Shipping weight | 46 lbs |
| Working Load Limit (lbs.) | 88184 |
| Safety Factor | 5:1 |
| Inside Width | 5.5" |
| Inside Height | 7.84" |
| Mouth Width | 3.31" |
| Shackle Size | 2-5/32" |
| Pin Size | 2" |
| Material | Alloy Steel |
| Finish | Painted |
| Type | Bolt Type Wide Body |
| Product Weight | 46 lbs. |
| Standards | Meets or exceeds all requirements of ASTM A148M. |
| Manufacturer Name | Van Beest |
| Brand Part Number | SLGPF040 |
| Additional Info | WLL (tons): 40 Temperature Range: -4°F / -20°C to 392°F / 200°C |
Shipping
Most orders ship by ground parcel; orders over 150 lbs ship by LTL truck freight with liftgate service. Shipping is calculated at checkout from the actual weight of your order. Full shipping policy.
Returns
This item is final sale. Load-bearing safety equipment can't be resold once it has left our control, so it can't be returned. If it arrives damaged or incorrect, contact us within 7 days and we'll make it right.
