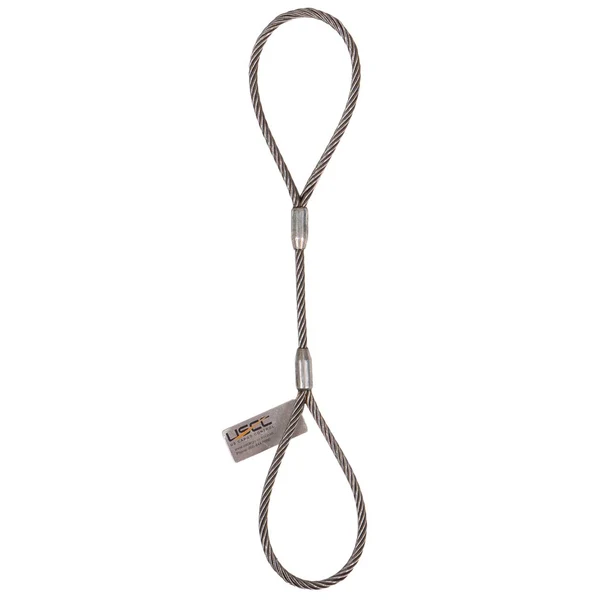

1 / 6 7/8" x 12' Standard Eye Wire Rope Sling
The 7/8" x 12' Standard Eye Wire Rope Sling is part of our Single Leg 6x19 line in the Wire Rope Slings department. It is rated with a Grade EIPS rating. Construction: Bright Steel Wire Rope.
Every order ships with the full specification table shown below, and a printable Heavy Haul Rigging spec sheet is available under Documents. Always match the working load limit to your load and inspect gear before each use.
At a glance
- Grade: EIPS
- Length: 12'
- Vertical Capacity: 7.6 tons / 15,200 lbs.
- Choker Capacity: 5.6 tons / 11,200 lbs.
- Basket Capacity: 15 tons / 30,000 lbs.
- Diameter: 7/8"
| SKU | SW1-78-12 |
|---|---|
| Shipping weight | 26.05 lbs |
| Safety Factor | 5:1 |
| 30 Degree Capacity | 7.6 tons / 15,200 lbs. Angled Basket Hitch |
| 45 Degree Capacity | 11 tons / 22,000 lbs. Angled Basket Hitch |
| 60 Degree Capacity | 13 tons / 26,000 lbs. Angled Basket Hitch |
| Vertical Capacity | 7.6 tons / 15,200 lbs. |
| Choker Capacity | 5.6 tons / 11,200 lbs. |
| Basket Capacity | 15 tons / 30,000 lbs. |
| Grade | EIPS |
| Diameter | 7/8" |
| Length | 12' |
| Core | IWRC |
| End Fitting | Flemish Eye |
| Material | Bright Steel Wire Rope |
| Product Weight | 26.05 lbs. |
| Standards | Meets or exceeds all ASME B30.9 & OSHA 1910.184 requirements. |
| Additional Info | Eye dimensions: 7"W x 14"L Rated capacities for basket hitch based on a D/d ratio of 25 |
